A little presentation of these Econowave / PA speakers.
The wave guide is a SEOS15 with a Denvo 360 attached (B&C de250) and a 15" P.Audio C15MB300.
The wave guide and driver was ordered from DIY Sound Group a couple of years back, and has since satt in storage. I got some spare time this fall, and started planing.
At first this was a project for some econowave for the livingroom or home theater, but as the project got closer too build phase and the idea got presented to the misses in the house... Well short story, thumbs down Confused.
So PA speakers it is. I have some other PA gear that i sometimes rent or loan out to friends and family, these will be a nice addition.

Here are some pictures from the process:

Planing.

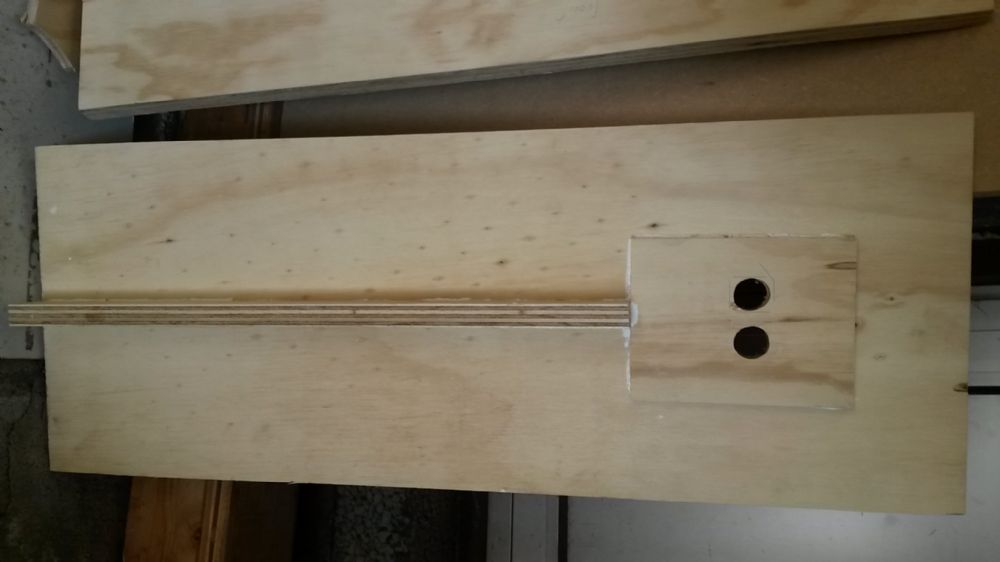

Rare plates with Speakon terminal holes.


Side plates with handles and bracings.

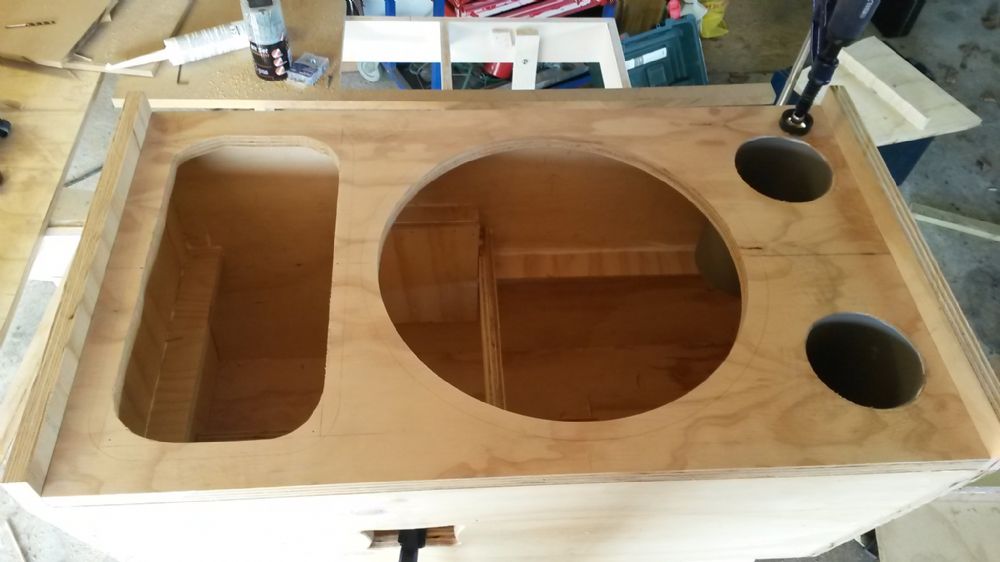

Baffle


Gluing


Almost finished


Nearly finished


The day after my wife's birtay party at the local club, live band and DJing after.


What remains is one last go on the finish and a metal grill.
They are hooked up to one Samson SX1200 each, through a 2way Ashly xr1001 crossed at about 1,5kHz.
They sound really nice, solide and punchy bass and detailed highs.

I'm currently doing measurements and tuning, they will be hooked up to a Berry DCX2496 DSP for fine tuning.
