Direct Link To This Post Posted: 13 December 2013 at 12:56pm
Look very niceBig smile  Are the cabinets MDF?  What kind of paint are you using?
James Secker          facebook.com/soundgearuk
James@soundgear.co.uk               www.soundgear.co.uk
Back to Top
ArthurG View Drop Down
Young Croc
Young Croc
Avatar

Joined: 03 May 2004
Location: France - China
Status: Offline
Points: 976
Direct Link To This Post Posted: 13 December 2013 at 1:23pm
Originally posted by Timebomb Timebomb wrote:

Look very niceBig smile  Are the cabinets MDF?  What kind of paint are you using?
Hi Tomebomb Smile
In the first post, I said that the cabinet is 100% made of 17 layers 24mm thick birch plywood. Here's a cut view of it:



For the paint, it's a special formulation for my usage, single component, water borne based (ie washable with water and soap), low VOC, no toxic, no smell, applicable with a roll or a gun machine. I buy it from a US company called Momentive (was Hexion few months ago)
Back to Top
ArthurG View Drop Down
Young Croc
Young Croc
Avatar

Joined: 03 May 2004
Location: France - China
Status: Offline
Points: 976
Direct Link To This Post Posted: 13 December 2013 at 1:36pm
Originally posted by imageoven imageoven wrote:

Hi Arthur,

Nice work. What is the 'function' of the shape around the 6.5"?
because it looks cool ? LOL
more seriously, the real reason is to physically match the MF and HF phase at the crossover point. In other words, I recess the mid to be able to align it with the HF. The goal is to have a good clean impulse response and keep a flat frequency response out of axis.
Back to Top
lgosdset View Drop Down
Young Croc
Young Croc


Joined: 28 September 2010
Location: Reading ish
Status: Offline
Points: 1203
Direct Link To This Post Posted: 13 December 2013 at 1:47pm
Originally posted by imageoven imageoven wrote:

Hi Arthur,

Nice work. What is the 'function' of the shape around the 6.5"?


yes I am interested by this too. how does this contour around the 6.5 change the sound?
Back to Top
Timebomb View Drop Down
Old Croc
Old Croc
Avatar

Joined: 11 October 2004
Location: Lancaster
Status: Offline
Points: 2716
Direct Link To This Post Posted: 13 December 2013 at 2:42pm
I would think it would help reduce diffraction in the mids, as well as look cool.

24mm birch eh, no mucking about, the cut away shows its simpler to build than i first imagined from looking at the finished cab.   Is the round over on the mids just cut in steps on the cnc then sanded smooth?

Also, are you using the follow me tool in sketchup to produce the round over or have you found a better way?

Cheers.

James
James Secker          facebook.com/soundgearuk
James@soundgear.co.uk               www.soundgear.co.uk
Back to Top
ArthurG View Drop Down
Young Croc
Young Croc
Avatar

Joined: 03 May 2004
Location: France - China
Status: Offline
Points: 976
Direct Link To This Post Posted: 01 January 2014 at 4:28pm
Hi Timebomb,

sorry the late reply, was very very busy...

For the round around the mid, first I must say that it makes nearly no difference in sound. If I remember, it's less than 0.5dB in frequency response on a very limited bandwidth. The reason is simple, this horn is too small and the expansion is too fast to get any significant loading.
Regarding the manufacturing, because I only had 10pcs to do, it's fully made by hand. No tool involved. If I had to make a production of this design, I will make custom guide and bit, but it will still be slow with the hand finish to get a nice smooth surface.


Finally, I got the amp to go with it. After so many months in the bench, tweaking the circuit design, it's nice to see it with a proper casing:








Specs:
> Full aluminum chassis with large black anodized heat sink
> Dual independent power supply with 300W transformers and 4pcs low ESR 15,000uF caps per channel
> Based on TI LME49830 driver and HITACHI 2SK1058 + 2SJ162 MOSFET transitors (3 pairs per channel)
> Top class parts including MUSE KZ and custom ASR TWIN-CAP capacitors through signal path
> Vintage analog db meters with back illumination by blue LED
> Bead blaster front panel with laser engraving
> Fully hand made (2pcs manufactured and that's it)
> RMS output power per channel at 0.1% THD : 120W 8ohms / 200W 4 ohms
> Slew rate : 39V/us
> Power supply ripple rejection : 105dB (f=DC)
> Typical THD (10W / 1kHz) : 0.0006%
> Dimension: W430 x H90 x D300 mm
> Weight: 15kg net

Just to clarify an important thing, the "reference" name must be taken literally, ie it's a reference point for me to judge other amps. No way it must be taken "reference" = the best. In this case, "reference" = a reference point for comparison.

Happy new year 2014 to everybody Smile

--Arthur


Edited by ArthurG - 01 January 2014 at 4:30pm
Back to Top
SMP View Drop Down
Young Croc
Young Croc
Avatar

Joined: 16 March 2013
Location: East London
Status: Offline
Points: 1226
Direct Link To This Post Posted: 02 January 2014 at 2:38am
There is not much "Tweaking" to do with LME's at all a very simple thing to use as pretty low component count there a lots of Chinese kits for them on ebay using either MOSFET or BJT

But perhaps you would like to comment on your tweaks to the topology?
Back to Top
SMP View Drop Down
Young Croc
Young Croc
Avatar

Joined: 16 March 2013
Location: East London
Status: Offline
Points: 1226
Direct Link To This Post Posted: 02 January 2014 at 2:47am


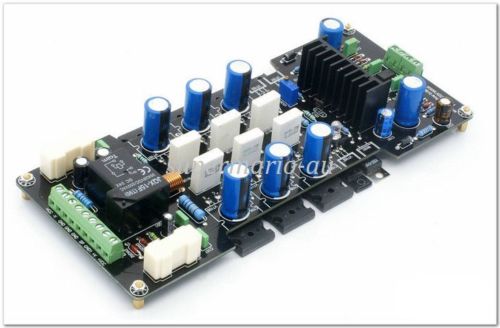

rather much like this one. very little you can do apart from input loading and biasing as it is all in the LME chipset
Back to Top
ArthurG View Drop Down
Young Croc
Young Croc
Avatar

Joined: 03 May 2004
Location: France - China
Status: Offline
Points: 976
Direct Link To This Post Posted: 02 January 2014 at 4:51am
SMP,

you are not welcome here with your arrogance and your "my stuff is the best, everything else sucks" tone you use in every topic on this forum Dead

for other people reading this story, I did not use a standard PCB design, my electronic friend engineer did his own, and even if the circuit is very simple and similar to many kits available (basically from a old GOLDMUND Mimesis topology that you can find the schematic everywhere on internet), the difference comes in the parts used. For example, I bought dozen of capacitors to find the tone I like and complementary to REF312. I've tried anything from pure copper foil, pure aluminum foil, silver, even gold from companies like Cicada, Obligato, Clarity cap, Panasonic, Mundorf and Jantzen just to name a few.
To be more specific,  if you look at the inside picture, you can see 2 big coupling capacitors with yellow epoxy in top left/right corners. These are custom made for me with 2 separate coils connected in series achieving a non-inductive and damping depleted setup. In other places, I've choosen Nichicon Muse Gold KZ and Panasonic special for audio parts. Resistors are DALE high speed non inductive stuff. and so on. The final combination gives the balance between dynamic, details and smoothness I wanted to reach.

As I said, it's not a commercial project and I have nothing to prove. It's only a humble spare time work that I wanted to share with the DIY fellows on this forum Hug

Cheers,
--Arthur


Edited by ArthurG - 02 January 2014 at 4:59am
Back to Top
SMP View Drop Down
Young Croc
Young Croc
Avatar

Joined: 16 March 2013
Location: East London
Status: Offline
Points: 1226
Direct Link To This Post Posted: 02 January 2014 at 5:22am
well I merely asked for an explaination of your tweaks. Why you are so defensive and rude I have no idea. but seems any kind of critique is not welcome here unless it is praise of some kind. True I am not a beginner rather a seasoned pro. well whoopie doo you can build a kit!!! and then spend hours or was it weeks to do something simple with it congratulations.

As for my attitude I see no wrong in asking a question or two about it
 And just so you can be sure this is a "Forum" which does not mean certain issues or relevant questions should not be asked.

I merely stated it is a very simple circuit that takes minimal effort to achieve as Ti have done it all for you.

Or is it we should just pour praise on anything shown or discussed here regardless?

It seems you are in some way threatened by my apparent knowledge why is that?
 Are You not confident enough in your endeavours to deal with any questions about them?
I am more than happy to answer any questions regarding anything I post here I have been doing this for over 40yrs and have gained a vast experience and knowledge of all aspects of Audio, Pro & Domestic.

I reserve the right to judge for myself the validity of any items ideas or principles posted on here. i am far from upset or offended by any critique anyone wishes to post. I feel no way.
IT IS A FORUM. Look it up in a Dictionary to establish it's true meaning.
this is not a place where everyone behaves like Children is it? I thought most on here were Adults. But some seem to think it is an emotive place when clearly it is not. just analytical debate that has place here not a case of "Mummy Mummy that Man was mean to me"
Grow up stop being childish telling me to play nicely or You will take Your Ball back.

Just qualify your "Tweaks" is all that is required & stop throwing your Dummy out of your Pram













Back to Top
TENSiON View Drop Down
Registered User
Registered User
Avatar

Joined: 02 September 2012
Status: Offline
Points: 279
Direct Link To This Post Posted: 02 January 2014 at 6:30am
Certainly a nice effort Thumbs Up gotta love a pair of analogue meters and a minimalist approach Big smile .. though I must admit I lol'd a bit when I saw those 400V(?) decoupling poly's on the inputs LOL

What total gain (input -> output) did you end up choosing?
Back to Top
ArthurG View Drop Down
Young Croc
Young Croc
Avatar

Joined: 03 May 2004
Location: France - China
Status: Offline
Points: 976
Direct Link To This Post Posted: 02 January 2014 at 9:04am
Originally posted by TENSiON TENSiON wrote:

Certainly a nice effort Thumbs Up gotta love a pair of analogue meters and a minimalist approach Big smile .. though I must admit I lol'd a bit when I saw those 400V(?) decoupling poly's on the inputs LOL

What total gain (input -> output) did you end up choosing?
They are 1200V decoupling caps Tongue
gain is 20 times.

BTW, working now on a more powerful version with at least 80V rail to get 400W 8 ohms / 800W 4ohm RMS output power. It will be used to push subs in my Karaoke room. First calculation with 15kg 2200VA transformer and 450x150x400mm chassis (passive cooling) gives a healthy 40kg beast ShockedShocked
