Hello All,

Sorry for hijacking the post.
I recently bought a C-Audio 4x300.
It did have already the inductor mod done.
I have changed the resistors on the four amps from 75ohm to 100ohm, i have ordered the 0.0047µF capacitors, and it already had the proper IGBTs and driver transistors for the IGBT.
The only mod who will be left is the pulse transformer. I am wondering if it is difficult to wind it up or if i should not hesitate to make it? i have never wound a transformer.
What are the risks if i leave the old pulse transformer?

And while i am here, the IGBT are the old NGTG50N60. How long do the IGBT last? While the board is off, i could change the IGBTs if needed.

Thanks a lot for your help.
Regards.
Back to Top
ceharden View Drop Down
The 10,000 Points Club
The 10,000 Points Club
Avatar

Joined: 05 June 2005
Location: Southampton
Status: Offline
Points: 11851 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ceharden Quote  Post ReplyReply Direct Link To This Post Posted: 05 August 2021 at 11:43pm
Speak to SimonP (see previous posts) for a ready wound transformer.  Otherwise I think I have a few of his transformers around.  I used to wind them myself, then Simon got a batch done and saved me the effort.
Back to Top
simonp1100 View Drop Down
Young Croc
Young Croc
Avatar

Joined: 01 September 2008
Location: Bristol
Status: Offline
Points: 1150 		Post Options Post Options   Thanks (0) Thanks(0)   Quote simonp1100 Quote  Post ReplyReply Direct Link To This Post Posted: 06 August 2021 at 4:25am
enclosed link for Pulse Transformer.


Clap
Back to Top
kedwardsleisure View Drop Down
Old Croc
Old Croc


Joined: 20 January 2009
Location: Staffordshire
Status: Offline
Points: 5157 		Post Options Post Options   Thanks (0) Thanks(0)   Quote kedwardsleisure Quote  Post ReplyReply Direct Link To This Post Posted: 06 August 2021 at 10:08am
Quote How long do the IGBT last?


They aren't a wearing part, just leave them be.
Kevin

North Staffordshire
Back to Top
Haschatan View Drop Down
New Member
New Member
Avatar

Joined: 06 May 2021
Location: Merseyside
Status: Offline
Points: 3 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Haschatan Quote  Post ReplyReply Direct Link To This Post Posted: 06 August 2021 at 5:08pm
Thanks a lot for your answers guys.

My C-audio 4x300 is going to be ready for many years now Smile
Back to Top
ceharden View Drop Down
The 10,000 Points Club
The 10,000 Points Club
Avatar

Joined: 05 June 2005
Location: Southampton
Status: Offline
Points: 11851 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ceharden Quote  Post ReplyReply Direct Link To This Post Posted: 06 August 2021 at 6:05pm
You're not after any more Pulses are you? 😉
Back to Top
M4trix View Drop Down
Registered User
Registered User
Avatar

Joined: 23 June 2009
Location: Croatia
Status: Offline
Points: 465 		Post Options Post Options   Thanks (0) Thanks(0)   Quote M4trix Quote  Post ReplyReply Direct Link To This Post Posted: 06 August 2021 at 10:13pm
Speaking of which,

@ceharden,

What are the values of those two bodged yellow caps ? 0,0047uF/100V ? Nothing 'bout them in service bulletins. Ermm
Back to Top
ceharden View Drop Down
The 10,000 Points Club
The 10,000 Points Club
Avatar

Joined: 05 June 2005
Location: Southampton
Status: Offline
Points: 11851 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ceharden Quote  Post ReplyReply Direct Link To This Post Posted: 07 August 2021 at 12:01pm
It's a good question.  To be honest due to the lack of full information it's not a mod I've ever done.  They appear to be Miller caps across the transistors doing the Vbe clamping (current limit) so I'm assuming they are there to reduce the sensitivity of the current limit to high frequency signals.
Back to Top
simonp1100 View Drop Down
Young Croc
Young Croc
Avatar

Joined: 01 September 2008
Location: Bristol
Status: Offline
Points: 1150 		Post Options Post Options   Thanks (0) Thanks(0)   Quote simonp1100 Quote  Post ReplyReply Direct Link To This Post Posted: 07 August 2021 at 12:17pm
Originally posted by ceharden ceharden wrote:

It's a good question.  To be honest due to the lack of full information it's not a mod I've ever done.  They appear to be Miller caps across the transistors doing the Vbe clamping (current limit) so I'm assuming they are there to reduce the sensitivity of the current limit to high frequency signals.

Thumbs Up Yes i think this is correct & this mod came out just after Crown took over the C-Audio brand & used it in the XS series etc. I also do this mod on any C-Audio Pulses i get in for service / upgrade. Clap


Edited by simonp1100 - 07 August 2021 at 12:19pm
Back to Top
kedwardsleisure View Drop Down
Old Croc
Old Croc


Joined: 20 January 2009
Location: Staffordshire
Status: Offline
Points: 5157 		Post Options Post Options   Thanks (0) Thanks(0)   Quote kedwardsleisure Quote  Post ReplyReply Direct Link To This Post Posted: 08 August 2021 at 8:08pm
the later crown-badged pulses (silver face) have the caps built into the pcb
Kevin

North Staffordshire
Back to Top
M4trix View Drop Down
Registered User
Registered User
Avatar

Joined: 23 June 2009
Location: Croatia
Status: Offline
Points: 465 		Post Options Post Options   Thanks (0) Thanks(0)   Quote M4trix Quote  Post ReplyReply Direct Link To This Post Posted: 08 August 2021 at 10:08pm

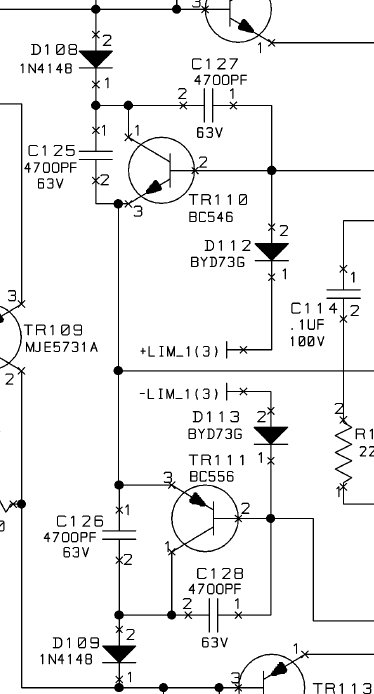

Guys, your conclusions about the caps were right. I've found the Crown's XS schematics with all mods included.
