Octavius 1560 kick bass horn

Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic

   Hey guys!
I have a project here that I originally designed for a PHL Audio 6201 Mnd driver. The driver has an octagonal shape basket so it is very compact. The enclosure size is 67Wx56Dx43H, it will fit also other drivers but might need some modifying of the box size.

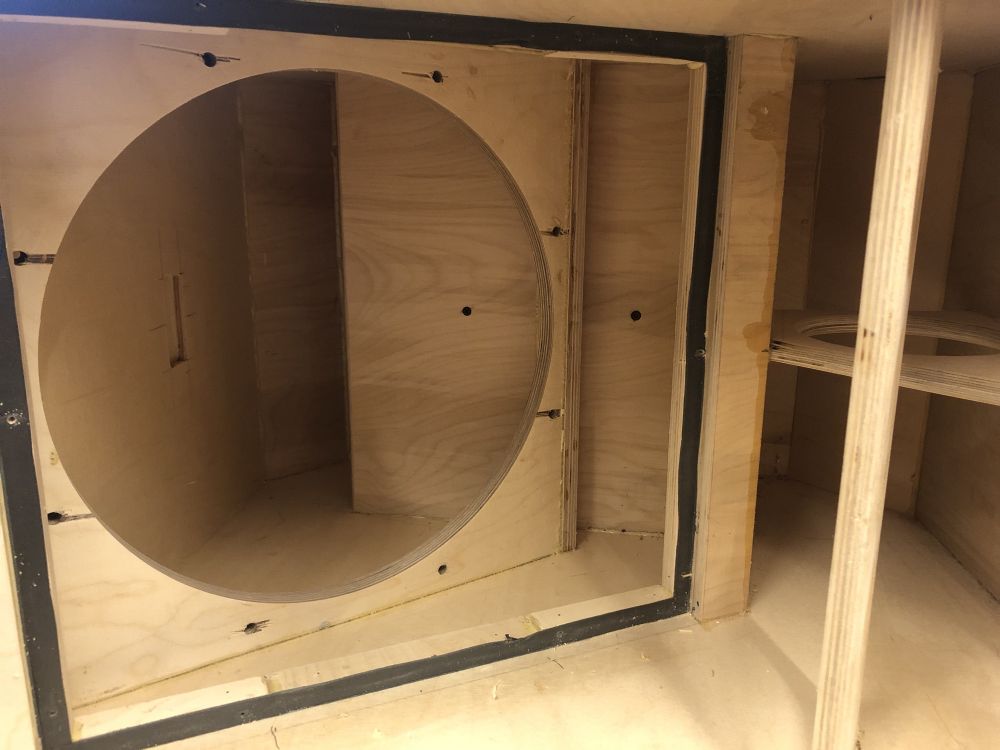

The design is a very compact sealed chamber and a compact throat chamber, then a conventional horn begins to expand. The driver sits in the throat chamber so the motor system is well ventilated.
It has a pretty low end extension 51Hz -10db. I dont remember the sensitivity because I have lost the horn resp file due to an error - it went blank, that sometimes happens and also the 2d plans are gone, but I could rebuild all of this if someone would find this project interesting. This is a prototype so it does not have any handles and has a little sweat on it :)

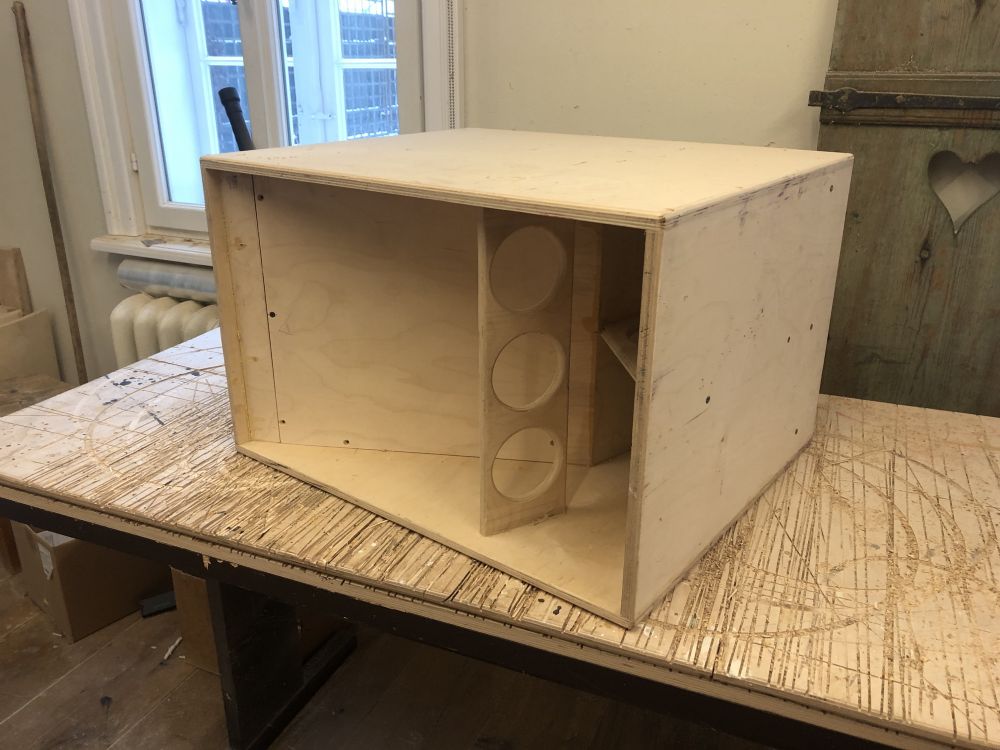

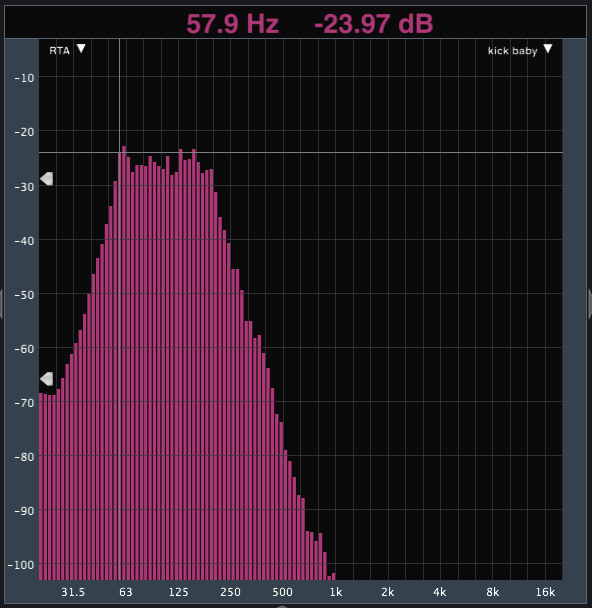

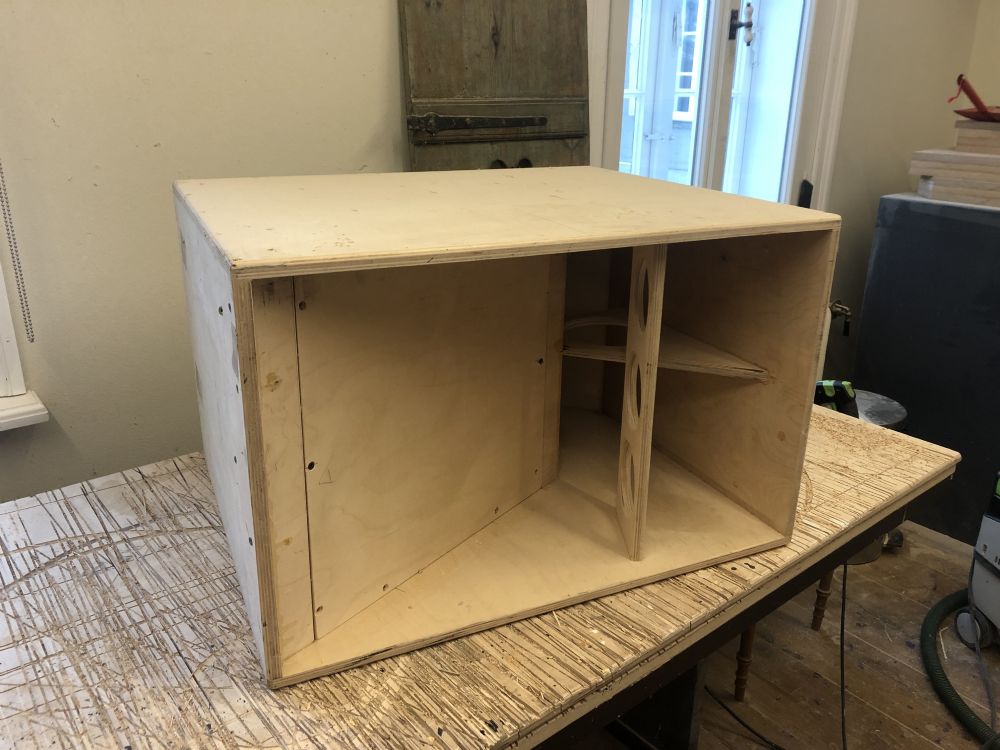

Here are some photos and a ground plane measurement with HP4 and LP4 filters activated, no EQ.
If you have any questions or suggestions drop a comment or PM

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
Augusts Members Profile Send Private Message Find Members Posts Add to Buddy List Registered User Joined: 07 January 2017 Status: Offline Points: 195	Post Options Post Reply Quote Augusts Report Post Thanks(0) Quote Reply Topic: Octavius 1560 kick bass horn Posted: 11 December 2021 at 9:40am
	Hey guys! I have a project here that I originally designed for a PHL Audio 6201 Mnd driver. The driver has an octagonal shape basket so it is very compact. The enclosure size is 67Wx56Dx43H, it will fit also other drivers but might need some modifying of the box size. The design is a very compact sealed chamber and a compact throat chamber, then a conventional horn begins to expand. The driver sits in the throat chamber so the motor system is well ventilated. It has a pretty low end extension 51Hz -10db. I dont remember the sensitivity because I have lost the horn resp file due to an error - it went blank, that sometimes happens and also the 2d plans are gone, but I could rebuild all of this if someone would find this project interesting. This is a prototype so it does not have any handles and has a little sweat on it :) Here are some photos and a ground plane measurement with HP4 and LP4 filters activated, no EQ. If you have any questions or suggestions drop a comment or PM

LjudLahger Members Profile Send Private Message Find Members Posts Add to Buddy List Young Croc Joined: 31 July 2008 Location: Sweden Status: Offline Points: 837	Post Options Post Reply Quote LjudLahger Report Post Thanks(0) Quote Reply Posted: 11 December 2021 at 10:14am
	Looks good!

Augusts Members Profile Send Private Message Find Members Posts Add to Buddy List Registered User Joined: 07 January 2017 Status: Offline Points: 195	Post Options Post Reply Quote Augusts Report Post Thanks(0) Quote Reply Posted: 11 December 2021 at 10:16am
	Thank you

king david Members Profile Send Private Message Find Members Posts Add to Buddy List Young Croc Joined: 17 January 2007 Location: italy Status: Offline Points: 1329	Post Options Post Reply Quote king david Report Post Thanks(0) Quote Reply Posted: 11 December 2021 at 4:47pm
	It’s very interesting!
	http://www.warriorcharge.noblogs.org

JulianDA Members Profile Send Private Message Find Members Posts Add to Buddy List Registered User Joined: 29 May 2018 Location: Soest, Germany Status: Offline Points: 156	Post Options Post Reply Quote JulianDA Report Post Thanks(0) Quote Reply Posted: 11 December 2021 at 7:38pm
	Looks like a fun little cab....great work!

bob4 Members Profile Send Private Message Find Members Posts Add to Buddy List Old Croc Joined: 29 February 2004 Location: Finland/Germany Status: Offline Points: 1924	Post Options Post Reply Quote bob4 Report Post Thanks(0) Quote Reply Posted: 11 December 2021 at 9:39pm
	Looking great! Very nice work, pity you lost your data! I am sure many people would appreciate it if you could be bothered with re-drawing and releasing the plan. I think someone was very recently asking for a kick bin that plays high....

Augusts Members Profile Send Private Message Find Members Posts Add to Buddy List Registered User Joined: 07 January 2017 Status: Offline Points: 195	Post Options Post Reply Quote Augusts Report Post Thanks(0) Quote Reply Posted: 12 December 2021 at 3:39am
	Im gonna do another measurement with filters off sometime soon so we can seee how high it can go but I think this measurement was taken considering the usable freq range when it was as linear as possible- 200Hz being the top emd, I personally think this is how high the kick bin should normally play maybe a little higher even. Thanks for all the thumbs up- that motivates me reanimating this thing Edited by Augusts - 12 December 2021 at 3:45am

king david Members Profile Send Private Message Find Members Posts Add to Buddy List Young Croc Joined: 17 January 2007 Location: italy Status: Offline Points: 1329	Post Options Post Reply Quote king david Report Post Thanks(0) Quote Reply Posted: 12 December 2021 at 5:32pm
	200hz and no honk would be nice
	http://www.warriorcharge.noblogs.org

VECTORDJ Members Profile Send Private Message Find Members Posts Add to Buddy List Young Croc Joined: 11 June 2006 Location: United States Status: Offline Points: 585	Post Options Post Reply Quote VECTORDJ Report Post Thanks(0) Quote Reply Posted: 12 December 2021 at 7:20pm
	A+

Augusts Members Profile Send Private Message Find Members Posts Add to Buddy List Registered User Joined: 07 January 2017 Status: Offline Points: 195	Post Options Post Reply Quote Augusts Report Post Thanks(0) Quote Reply Posted: 13 December 2021 at 8:26am
	OK so I did a simulation of the box This is with filters on, spl at 1000w aes PHL driver But the embarassing part is that with filters off, its so bad that I even don't want to show it publicly :D When I designed this box I really did it to have a low end of 60Hz to be able to cross over to infra subs, but later I figured that it is best to have a kick that plays from 80hz and then it can go higher to about 250hz so... I don't know. the RTA measurement looks good but the sensitivity is low. Maybe its not worth bothering further on into this project Edited by Augusts - 13 December 2021 at 8:27am

cms nr2 Members Profile Send Private Message Find Members Posts Add to Buddy List New Member Joined: 12 January 2023 Location: germany Status: Offline Points: 2	Post Options Post Reply Quote cms nr2 Report Post Thanks(0) Quote Reply Posted: 25 November 2023 at 8:19pm
	Hi would it be possible to get the plans or at least some measurements of the enclosure so I can try to re simulate it in hornresp? Would like to build some

Augusts Members Profile Send Private Message Find Members Posts Add to Buddy List Registered User Joined: 07 January 2017 Status: Offline Points: 195	Post Options Post Reply Quote Augusts Report Post Thanks(0) Quote Reply Posted: 26 November 2023 at 6:05pm
	hey! I am the designer behind this box. Ill try to find some plans for the box, Or try to make a hornresp edit file. The kick was very good with filters on.
