Topic: The return of the JBL 2226H parabolic horn
Posted By: more10
Subject: The return of the JBL 2226H parabolic horn
Date Posted: 05 January 2021 at 9:12pm
|
https://www.diyaudio.com/forums/subwoofers/365629-return-jbl-2226h-parabolic-horn.html" rel="nofollow - The return of the JBL 2226H parabolic horn
|
Replies:
Posted By: more10
Date Posted: 05 January 2021 at 9:14pm
|
A few years back I built a parabolic horn with JBL 2226. It worked well so I have continued working on such designs. I got a request from a guy in Canada, so I used my improvements on a new drawing.
|
Posted By: JulianDA
Date Posted: 05 January 2021 at 9:52pm
| It seems like the ":" after "https" went missing in your link ;) |
Posted By: more10
Date Posted: 05 January 2021 at 10:05pm
Thanks Julian. Fixed. The interface is a little bit odd :-)
|
JulianDA wrote:Posted By: more10
Date Posted: 05 January 2021 at 11:06pm
  |
Posted By: more10
Date Posted: 05 January 2021 at 11:09pm
| If you want access to the cad file you need to download from diyaudio.com. The file type is not allowed here. |
Posted By: bob4
Date Posted: 17 January 2021 at 11:48am
| Would you care to render a few pictures? Some of us don't have access to cad software...... |
Posted By: more10
Date Posted: 17 January 2021 at 12:30pm
|
Rendered without showing bracing:  Rendered from side, hiding side panels and hatch.  |
Posted By: more10
Date Posted: 17 January 2021 at 12:31pm
|
ID=48.20 Ang=1.0 x Pi Eg=44.72 Rg=0.50 Fta=0.80 S1=342.98218512322376 S2=467.7506735940702 Par=19.45 F12=0.00 S2=467.7506735940702 S3=720.7643021103546 Par=61.02993684957077 F23=0.00 S3=685.3662642846632 S4=1705.7321646634698 Par=146.94596085027817 F34=0.00 S4=1705.7321646634698 S5=2200.0 Par=88.5 F45=0.00 Sd=880.00 Bl=19.2 Cms=1.59E-04 Rms=5.0 Mmd=84.56 Le=1.75 Re=5.30 OD=1 Vrc=163.45596867425678 Lrc=50.00 Fr=100.00 Tal=4.00 Vtc=5818.343510452398 Atc=1012.2290069682654 Pmax=100 Xmax=5.0 Path=0.0 Mass=0.00 Re'=0.00 Leb=0.00 Le=0.00 Ke=0.00 Rss=0.00 Rms=0.00 Ams=0.00E+00 Fr1=0.00 Fr2=0.00 Fr3=0.00 Fr4=0.00 Tal1=100 Tal2=100 Tal3=100 Tal4=100 Comment=JBL 2226 parabolic 4 sections ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ FILTER 0 0.01 0.0 -1 0 0.01 0.0 -1 0 0.01 0.0 -1 0 0.01 0.0 -1 0 0.01 0.0 -1 0 0.01 0.0 -1 3200 25 0 0 40.50.50.5 0.50.50.50.5 SSSS 0111 1011 0022 0111 111 000 ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ |
Posted By: more10
Date Posted: 17 January 2021 at 12:31pm
| Previous post is the Hornresp record |
Posted By: more10
Date Posted: 17 January 2021 at 12:36pm
|

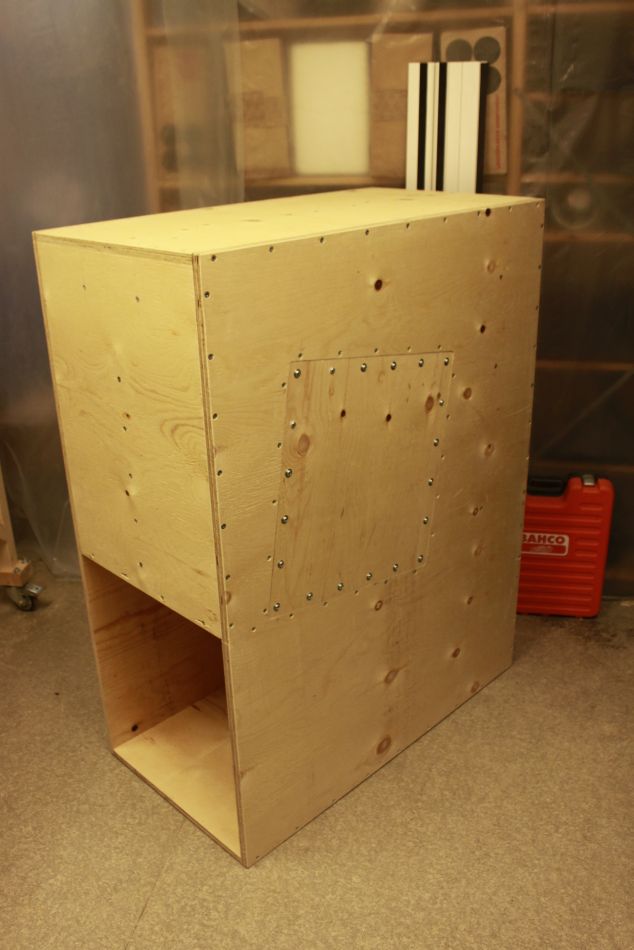

My old prototype.
|
Posted By: bob4
Date Posted: 17 January 2021 at 9:37pm
|
Thank you! Interesting stuff!
Probably benefits from stacking mouths together....
|
Posted By: more10
Date Posted: 17 January 2021 at 10:04pm
|
Thanks! |
