Topic: H/R118 by Startec
Posted By: dj-panoramix
Subject: H/R118 by Startec
Date Posted: 17 October 2008 at 12:10pm
here is another project of Mr Startec ,it's a hybrid horn reflex for RCF LF18N4o1.

here is the plan:
http://users.skynet.be/fa567915/HR-118BRHornStartecv2.pdf - http://users.skynet.be/fa567915/HR-118BRHornStartecv2.pdf http://www.servimg.com/image_preview.php?i=74&u=11032718 -




Replies:
Posted By: Wrighty
Date Posted: 17 October 2008 at 12:13pm
Looks a bit XXL-esque...

-------------
ALL YOUR BASS ARE BELONG TO US.


Posted By: Xmax extreme
Date Posted: 18 October 2008 at 4:07pm
WOW!!!Clap Clap Clap Thank you for sharing the plans DJ panoramix... though have some similarities with some existing design but this has a longer horn length and will play lower... Great design MR. STARTEC!Thumbs Up



Posted By: wafflesomd
Date Posted: 18 October 2008 at 6:11pm
Ported horn?

Only good up to 100hrtz :/

Deadbeat?


Posted By: Deadbeat
Date Posted: 18 October 2008 at 6:30pm
Good work - finished designs are hard work and always appreciated.

wafflesomd - ?
It is a ported horn. But designs do differ a lot. This is the first diy plan I've seen that has used this particular form factor. Do remember to take in the y axis scale on the LEAP graph.

panoramix - do you have a link to any more info of this Mr Startec and his designs?


-------------
Away on extended leave.


Posted By: _djk_
Date Posted: 19 October 2008 at 2:24am
Looks very well thought out, and I like the even cone loading.

-------------
djk


Posted By: wafflesomd
Date Posted: 19 October 2008 at 4:05am
Any way to get it to go higher than 100 hrtz?


Posted By: _djk_
Date Posted: 19 October 2008 at 8:07am
The response shown is with a 115hz 24dB Butterworth low pass filter.

-------------
djk


Posted By: wafflesomd
Date Posted: 19 October 2008 at 6:47pm
Oh, nevermind then :)


Posted By: dj-panoramix
Date Posted: 19 October 2008 at 8:04pm
yes i have his email ,why ?
no there isn't any other link about his design because he don't go so many on the web.
this guy work since long time and try to offer plan he allready test before ,not only by programm like so many plan on the web.

i will but his 2 new design ,another bass horn and a 3 way speaker (full horn ,with phase plug and work in tri amp/bi amp).


Posted By: Deadbeat
Date Posted: 19 October 2008 at 9:03pm
No need to be so afrontive about it - just wondering exactly where this great stuff comes from, that's all.


-------------
Away on extended leave.


Posted By: Xmax extreme
Date Posted: 20 October 2008 at 3:03am
Originally posted by dj-panoramix dj-panoramix wrote:

yes i have his email ,why ?
no there isn't any other link about his design because he don't go so many on the web.
this guy work since long time and try to offer plan he allready test before ,not only by programm like so many plan on the web.

i will but his 2 new design ,another bass horn and a 3 way speaker (full horn ,with phase plug and work in tri amp/bi amp).

Glad to hear that dj panoramix, you must be close to him coz he share his great works to you, it takes a lot of hard work to come up with these great designs and give it for free. I saw his other design also, the SUPERbass Horn. that was a superb design, very well done.

thank you for sharing the plan again, for sure we all be happy for the holidays to come! so excited to build some for the holidays....keep up the great work!Clap


-------------
Maximum Excursion

Don't criticize your own competition, it looks like a publicity of your own commercial products.


Posted By: wafflesomd
Date Posted: 20 October 2008 at 5:31am
I was hoping these would be a nice cabinet to use over the 186, but not for me.

186 doesn't go as low, but there's no way I could move four of those ported horns by myself every gig.


Posted By: Sibulus
Date Posted: 20 October 2008 at 11:50am
Originally posted by Deadbeat Deadbeat wrote:

No need to be so afrontive about it - just wondering exactly where this great stuff comes from, that's all.


Language barrier I think mate. Wink


Posted By: dj-panoramix
Date Posted: 21 October 2008 at 11:05am
Originally posted by Sibulus Sibulus wrote:

Originally posted by Deadbeat Deadbeat wrote:

No need to be so afrontive about it - just wondering exactly where this great stuff comes from, that's all.


Language barrier I think mate. Wink

exactly , i just try to answer with my bad english sorry !!



Posted By: Deadbeat
Date Posted: 21 October 2008 at 2:08pm
Nah it's fine - tell this mister Startec to keep up the good work.

-------------
Away on extended leave.


Posted By: heinrich
Date Posted: 23 October 2008 at 2:32am
actually this is a very close contender to martin's WLX as far as this thread is concerned:

http://www.speakerplans.com/forum/forum_posts.asp?TID=18252

and it's size is 90% - 95% near to this:

http://www.martin-audio.com/tourandprof/wlx.html



-------------
.....power is nothing without control....


Posted By: mykey
Date Posted: 24 October 2008 at 12:01pm
looks great!

My only query is, the rear of the driver is facing straight towards the port exit

didn't read through it all, but has anyone bulit this?

if you're going to build this, I would suggest maybe putting a piece of wood in marked red?

http://imageshack.us">
[URL=http://g.imageshack.us/img508






-------------
......just all them hanging there like giant bananas.



Posted By: Xmax extreme
Date Posted: 24 October 2008 at 12:25pm
Originally posted by mykey mykey wrote:

looks great!

My only query is, the rear of the driver is facing straight towards the port exit

didn't read through it all, but has anyone bulit this?

if you're going to build this, I would suggest maybe putting a piece of wood in marked red?

http://imageshack.us">
This has a similar design, or maybe a revision on this. the thread below, maybe you could give us some idea as to the effect of the additional piece of wood. maybe slower down the velocity of the moving air?

http://www.speakerplans.com/forum/forum_posts.asp?TID=20718







-------------
Maximum Excursion

Don't criticize your own competition, it looks like a publicity of your own commercial products.


Posted By: mykey
Date Posted: 24 October 2008 at 1:03pm
Yes, it would be nice if the air saw the rest of the chamber before it leftLOL, I've always used the idea that if the cone can't directly see the exit of the port in a design like this, the better it is

not to bad if its port tubes, say directly behind a driver, but not a labrynth port like this

I put a reflective panel in the XXL around the port area for this reason


-------------
......just all them hanging there like giant bananas.



Posted By: mykey
Date Posted: 24 October 2008 at 1:17pm
Originally posted by _djk_ _djk_ wrote:

Looks very well thought out, and I like the even cone loading.
it's the same loading as the Xtro, contour stylee

-------------
......just all them hanging there like giant bananas.



Posted By: Xmax extreme
Date Posted: 24 October 2008 at 2:26pm
Originally posted by mykey mykey wrote:

Yes, it would be nice if the air ssaw the rest of the chmaber before it left, I've always used the idea that if the cone can't directly see the exit of the port in a design like this, the better it is

not to bad if its port tubes, say directly behind a driver, but not a labrynth port like this


Got the pointThumbs Up.... a reason why Martin WLX uses  two rounded ports...


-------------
Maximum Excursion

Don't criticize your own competition, it looks like a publicity of your own commercial products.


Posted By: Mark James
Date Posted: 25 October 2008 at 9:15am

so then, how low would say four of these get?

it looks realy similar to the design amano posted recently too,

Im interested as these seem to be a possible candidate for a relatively cheap sub to go under some slightly unusual hd15's [ie 300w neo drivers, slightly less overall output, a fair bit lighter cheaper and more efficient]

could a design like this do say 30<70hz at moderate power levels?



-------------
me so horny me love you long throw
horn loaded for her pleasure


Posted By: Xmax extreme
Date Posted: 25 October 2008 at 9:34am
Originally posted by Markk James Markk James wrote:

so then, how low would say four of these get?

it looks realy similar to the design amano posted recently too,

Im interested as these seem to be a possible candidate for a relatively cheap sub to go under some slightly unusual hd15's [ie 300w neo drivers, slightly less overall output, a fair bit lighter cheaper and more efficient]

could a design like this do say 30<70hz at moderate power levels?


surely this will play lower in a group of 4 per side... so excited to build the first two pair the following week...


-------------
Maximum Excursion

Don't criticize your own competition, it looks like a publicity of your own commercial products.


Posted By: Xmax extreme
Date Posted: 25 October 2008 at 10:28am

Mykey, thinking about moving the port to a lower position, but still its a rectangular port with the same dimension.. would this make a difference compare to the original design??

please ignore the left pic, its not edited...





-------------
Maximum Excursion

Don't criticize your own competition, it looks like a publicity of your own commercial products.


Posted By: mykey
Date Posted: 25 October 2008 at 12:06pm
@ Xmax

I do feel a bit strange messing with the internal layout of someone elses design

I personaly would do it like this
I'm thinking the designer may have put the port on the lid, to gain some extra port length using the lid it's self?Ermm

http://imageshack.us">
[URL=http://g.imageshack.us/img136/revisedhybridhornqj8.jpg/1/][IMG]http://img136.imageshack.us/img136/revisedhybridhornqj8.jpg


-------------
......just all them hanging there like giant bananas.



Posted By: Xmax extreme
Date Posted: 25 October 2008 at 12:20pm
nice myke,... i was thinking also that option... i think mr startec would be open to the the changes we have, we are here to share knowledge to come come up with a better design... Smile

-------------
Maximum Excursion

Don't criticize your own competition, it looks like a publicity of your own commercial products.


Posted By: dj-panoramix
Date Posted: 25 October 2008 at 3:47pm
i can ask him if you want ...lol


Posted By: Xmax extreme
Date Posted: 25 October 2008 at 4:00pm
Originally posted by dj-panoramix dj-panoramix wrote:

i can ask him if you want ...lol

LOL!Thumbs Up


-------------
Maximum Excursion

Don't criticize your own competition, it looks like a publicity of your own commercial products.


Posted By: login4
Date Posted: 25 October 2008 at 6:57pm
exciting stuff guys, Thumbs Up

-------------
CELTIC SUBSONIC SOUND SYSTEMS


Posted By: dj-panoramix
Date Posted: 29 October 2008 at 10:54am
Originally posted by mykey mykey wrote:

@ Xmax

I do feel a bit strange messing with the internal layout of someone elses design

I personaly would do it like this
I'm thinking the designer may have put the port on the lid, to gain some extra port length using the lid it's self?Ermm

http://imageshack.us">
[URL=http://g.imageshack.us/img136/revisedhybridhornqj8.jpg/1/][IMG]http://img136.imageshack.us/img136/revisedhybridhornqj8.jpg

so i asked him ,here is this answer:
Quote
I see that the port was moved, as it was originally
but by working on the port, I optimized the flow of airflow in the enclosure to the tunnel at an angle of 90 degrees between the door and the brace of 8cm at the beginning of port. The airflow is normally more consistent like this:


Posted By: DJEvol
Date Posted: 30 October 2008 at 8:24pm
et ben on peut dire que tous les plans du les donnes aux anglais toi mdr


Posted By: mykey
Date Posted: 31 October 2008 at 3:13am
I see, but he says NORMALY, so he isn't 100%, thats why I asked if it has been built and tested?


Looks good, nice and compact, can't wait for some feedback on this design


-------------
......just all them hanging there like giant bananas.



Posted By: MEAW
Date Posted: 31 October 2008 at 11:17am
OH!YES!! Thank you and thank you for sharing the plans.
I'am build your H/R118 to nexproject.
Please show photos H/R118 cabinet thank you very much.


Posted By: dj-panoramix
Date Posted: 31 October 2008 at 11:51am
Originally posted by mykey mykey wrote:

I see, but he says NORMALY, so he isn't 100%, thats why I asked if it has been built and tested?
Looks good, nice and compact, can't wait for some feedback on this design
i will ask ,but i think he had tried both ...Wink


Posted By: LjudLahger
Date Posted: 04 November 2008 at 3:46pm
Now it's really time for someone to build this and show some pictures! Wink


Posted By: Paulo Duto
Date Posted: 04 November 2008 at 4:37pm
Hi

http://imageshack.us">

Regards,




-------------
Paulo Duto


Posted By: Paulo Duto
Date Posted: 04 November 2008 at 4:41pm
Hi

http://imageshack.us">


-------------
Paulo Duto


Posted By: Paulo Duto
Date Posted: 04 November 2008 at 4:54pm
Hi
http://imageshack.us">

Regards,


-------------
Paulo Duto


Posted By: Paulo Duto
Date Posted: 04 November 2008 at 5:02pm
Hi
http://imageshack.us">
Regards,


-------------
Paulo Duto


Posted By: LjudLahger
Date Posted: 04 November 2008 at 5:22pm
Clap WOOOOOOW Clap

Super-nice!

They where much smaller then I thought!

How did they perform?


Posted By: Paulo Duto
Date Posted: 04 November 2008 at 6:34pm

Hi

Firstly haven't build any of them.

The last picture (green and black painting) pertains to Fabrício, the guy who build some planar horns in past if I remember correctly and post something here too in past about  planar.
His post beside that picture is:

"Voila les miens
testés ca le weekend dernier en extérieur avec 3 382Pk au dessus
ben honetement tres surpris du rendement
c clair ,propre, rond,dinamique
jadore
Deux sufisent largement
le troisieme etais mise la parceque on savais pas trop ou la metre
puis comme tu la vue
ca reste dans la continuitée des motifs des autre
donc voila function autoresize(im) {if (im.width>600) {im.width=600;}}
Moi jai deux HR-118 amplifié par un HPA A5000
mes deux tete 382P par HPA A2800
lautre 382P par un inter-M 500
voila le tout driver par un DCX 2496
caisson 32 A 115hz
tete couper a 80Hz
ca tourne nikel

les tetes jai prise les mesure sur le site B.corde des version 2
jai fait les plans moi meme
calculer suivant le mem litrage et meme volume interieur
voila function autoresize(im) {if (im.width>600) {im.width=600;}} "

Report also to Ceharden comments at performance of his 15" ported horns.

In past I've used 12 Whorns(18"), like Keele ones, which I modified adjusting throat and Vb to loudspeaker T/S at hand, and changed position of front ducts (closed front openings), and put them firing directly inside the short horn near the throat (this I do inspired in Mr BF articles in Speaker building magazine). Made so gives a good boost in the response, just where in past it need a eq without any Watt more... Think what a reward: more lows for the same. Other PA owners remain trying to discover what I've done to obtain that response up to date.
All I have to say is that using six WH a side there was no need of eq to have near flat from 40 Hz up... Low cut at 40 Hz helped us to avoid problem with the Gyms roof to play (delayed) with the PA.
At that time I always used Behringer DSP8000 RTA and mic ECM8000 to align the PA to the place... It functions well for me.

Regards,




-------------
Paulo Duto


Posted By: Mark James
Date Posted: 04 November 2008 at 8:59pm

so back to my question, how low will four go?

and will the g50 or the v18 1200 work in her? [needsub for some hd's]



-------------
me so horny me love you long throw
horn loaded for her pleasure


Posted By: dj-panoramix
Date Posted: 04 November 2008 at 10:37pm
mainly the french guy say ,it's dynamic ,linear and f**king powerfull ...Wink

to mark: why do you want use another driver in it ? it's designed to work with the rcf ...


Posted By: Mark James
Date Posted: 15 November 2008 at 12:56am
the other drivers i mentioned i either own or i can lay my hands on readily...

-------------
me so horny me love you long throw
horn loaded for her pleasure


Posted By: pedrooo
Date Posted: 25 November 2008 at 10:03am
Originally posted by Paulo Duto Paulo Duto wrote:

Hi
http://imageshack.us">

Regards,


oh ! it's my HBR :)

an other picture :
http://i71.servimg.com/u/f71/12/81/53/38/dsc00010.jpg - http://i71.servimg.com/u/f71/12/81/53/38/dsc00010.jpg



Posted By: Jake_Fielder
Date Posted: 25 November 2008 at 2:18pm
Originally posted by Markk James Markk James wrote:

so back to my question, how low will four go?

and will the g50 or the v18 1200 work in her? [needsub for some hd's]


Probably just as low as 1 goes. because the port dictates the low cut off.
If you put the ports next to each other then the tuning would be lowered slightly, But not too much.


Posted By: Jake_Fielder
Date Posted: 25 November 2008 at 2:19pm
Also i dont see why the horn mouth wasnt designed bigger, it looks like it could have easily been done.... otherwise its pretty good.

@mykey, why wouldnt you want the back of the driver to 'see' the port?


Posted By: darkmatter
Date Posted: 25 November 2008 at 3:25pm
Originally posted by Jake_Fielder Jake_Fielder wrote:

@mykey, why wouldnt you want the back of the driver to 'see' the port?


I think mykey's going on the idea that he wants the entire air mass in the rear chamber to be treated as the air mass acting on the port. A direct path from the back of the driver to the port might mess up this relationship, meaning the models and reality would differ. The lpf effect of the rear chamber could also be compromised by a direct path to the port.

Just guessing though!


Posted By: Deadbeat
Date Posted: 25 November 2008 at 3:43pm
I think it's just a feeling...to verify this, we need an FEA analysis or even data taken from sensors in a rear chamber.

The mass and spring made of air is a relationship that I've found you positively have to work at to screw up...


-------------
Away on extended leave.


Posted By: Xmax extreme
Date Posted: 25 November 2008 at 3:45pm
Agree on darkmatter... Thumbs Up

-------------
Maximum Excursion

Don't criticize your own competition, it looks like a publicity of your own commercial products.


Posted By: MarjanM
Date Posted: 25 November 2008 at 4:58pm
I have tried to simulate the box in hornresp.
It apears that it wont go much lower than 50Hz Confused


-------------
Marjan Milosevic
MM-Acoustics
www.mm-acoustics.com
https://www.facebook.com/pages/MM-Acoustics/608901282527713


Posted By: Deadbeat
Date Posted: 25 November 2008 at 5:03pm
Post your inputs.

-------------
Away on extended leave.


Posted By: MarjanM
Date Posted: 25 November 2008 at 6:03pm
I am on another comp now but is something like this.

s1 - 750
s2 - 3600

horn length 160
back ch around 150 lit
front ch around 30 lit

port area around 350cm2
port length 32cm


-------------
Marjan Milosevic
MM-Acoustics
www.mm-acoustics.com
https://www.facebook.com/pages/MM-Acoustics/608901282527713


Posted By: Jake_Fielder
Date Posted: 25 November 2008 at 6:35pm
Originally posted by darkmatter darkmatter wrote:

Originally posted by Jake_Fielder Jake_Fielder wrote:

@mykey, why wouldnt you want the back of the driver to 'see' the port?


I think mykey's going on the idea that he wants the entire air mass in the rear chamber to be treated as the air mass acting on the port. A direct path from the back of the driver to the port might mess up this relationship, meaning the models and reality would differ. The lpf effect of the rear chamber could also be compromised by a direct path to the port.

Just guessing though!

Originally posted by deadbeat deadbeat wrote:

I think it's just a feeling...to verify this, we need an FEA analysis or even data taken from sensors in a rear chamber.

The mass and spring made of air is a relationship that I've found you positively have to work at to screw up...

I think that because the rear of the cone is cone shaped (obviouslyLOL) it wont 'make' the air fly backwards towards the port, it just creates a positive pressure over all the rear chamber. In my opinion...

If you look through my port Wink (on my ported horns) you can see a bit of the magnet, but none of the cone, so i doubt the cone can 'see' the outside.

Thats just my guess tho, i agree with deadbeat too, that it would need some sort of test to prove or disprove, this is probably tests that noone can be bothered to do, or doesnt have the equipment to test (I certainly cant!)


Posted By: Deadbeat
Date Posted: 25 November 2008 at 7:05pm
I'll make a sim for this one as well to compare, Marjan. When I get on a PC...have a big backlog of things to do.

-------------
Away on extended leave.


Posted By: Xmax extreme
Date Posted: 26 November 2008 at 4:22am
Originally posted by Jake_Fielder Jake_Fielder wrote:

Originally posted by darkmatter darkmatter wrote:

Originally posted by Jake_Fielder Jake_Fielder wrote:

@mykey, why wouldnt you want the back of the driver to 'see' the port?


I think mykey's going on the idea that he wants the entire air mass in the rear chamber to be treated as the air mass acting on the port. A direct path from the back of the driver to the port might mess up this relationship, meaning the models and reality would differ. The lpf effect of the rear chamber could also be compromised by a direct path to the port.

Just guessing though!

Originally posted by deadbeat deadbeat wrote:

I think it's just a feeling...to verify this, we need an FEA analysis or even data taken from sensors in a rear chamber.

The mass and spring made of air is a relationship that I've found you positively have to work at to screw up...

I think that because the rear of the cone is cone shaped (obviouslyLOL) it wont 'make' the air fly backwards towards the port, it just creates a positive pressure over all the rear chamber. In my opinion...

If you look through my port Wink (on my ported horns) you can see a bit of the magnet, but none of the cone, so i doubt the cone can 'see' the outside.

Thats just my guess tho, i agree with deadbeat too, that it would need some sort of test to prove or disprove, this is probably tests that noone can be bothered to do, or doesnt have the equipment to test (I certainly cant!)
Very good point there jake..
or lets ask one here who has done a lot of experiments on this type of sub... mykey?Wink please your experience is highly appreciated


-------------
Maximum Excursion

Don't criticize your own competition, it looks like a publicity of your own commercial products.


Posted By: heinrich
Date Posted: 26 November 2008 at 5:15am
xmax,

ga gama naka bai?


-------------
.....power is nothing without control....


Posted By: Xmax extreme
Date Posted: 26 November 2008 at 5:32am

Bisaya language
Bai musta? Gi una nako order mga drivers baiSmile, 8 kabouk... before christmas ako target na sugod ug buhat bai...mao ni ako driver gamit. 800 watts RMS

English translation
Mate how you doin? i place an order first the drivers my friend, 8 pcs, before christmas will be my target to start building, here's my new driver i'm going to use. 800 watts RMS



-------------
Maximum Excursion

Don't criticize your own competition, it looks like a publicity of your own commercial products.


Posted By: heinrich
Date Posted: 26 November 2008 at 5:40am

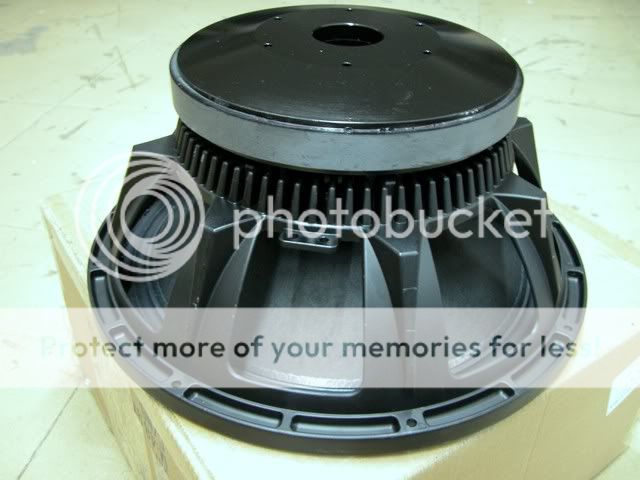

wayt ............what drivers are these .............they look gud



-------------
.....power is nothing without control....


Posted By: Xmax extreme
Date Posted: 26 November 2008 at 5:44am
Yes they look good to me!Wink.. China bai... specific order...... i can post the Thiele small parameters

-------------
Maximum Excursion

Don't criticize your own competition, it looks like a publicity of your own commercial products.


Posted By: heinrich
Date Posted: 26 November 2008 at 5:48am
jayr...........is this you

I was waiting if you've made the cabs
................
waiting for results actually.....................



-------------
.....power is nothing without control....


Posted By: Xmax extreme
Date Posted: 26 November 2008 at 5:57am
ill inform you once done bai...im also planning to build the DUAL WBIN 18, almost the same as DAS and Tasso audio

-------------
Maximum Excursion

Don't criticize your own competition, it looks like a publicity of your own commercial products.


Posted By: Xmax extreme
Date Posted: 26 November 2008 at 5:59am
Mykey has his own version of DUAL 18 wbin and my existing driver looks very good on paper...this new driver of mine is 125mm voice coil with dual spider tooWink

-------------
Maximum Excursion

Don't criticize your own competition, it looks like a publicity of your own commercial products.


Posted By: tommysb
Date Posted: 26 November 2008 at 8:41am
Originally posted by Xmax extreme Xmax extreme wrote:

Yes they look good to me!Wink.. China bai... specific order...... i can post the Thiele small parameters

Hi XMax,

Please post the parameters if you have them and are able to do so!

Many thanks,

Tom


Posted By: Xmax extreme
Date Posted: 26 November 2008 at 10:14am
hello tom,

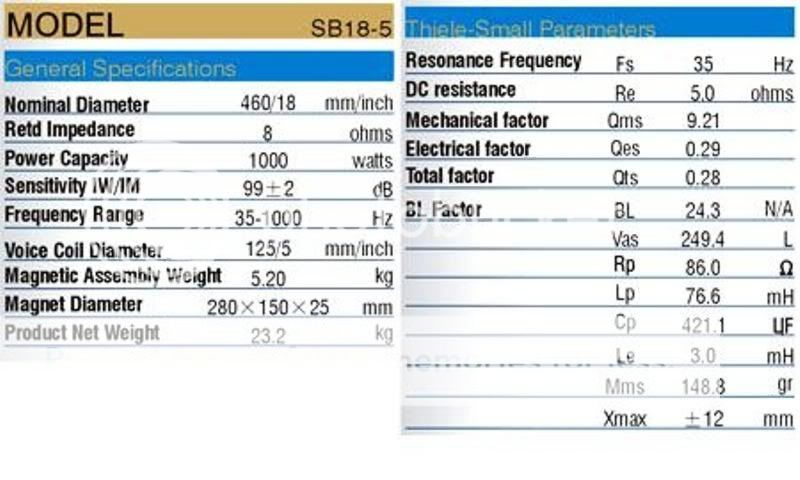

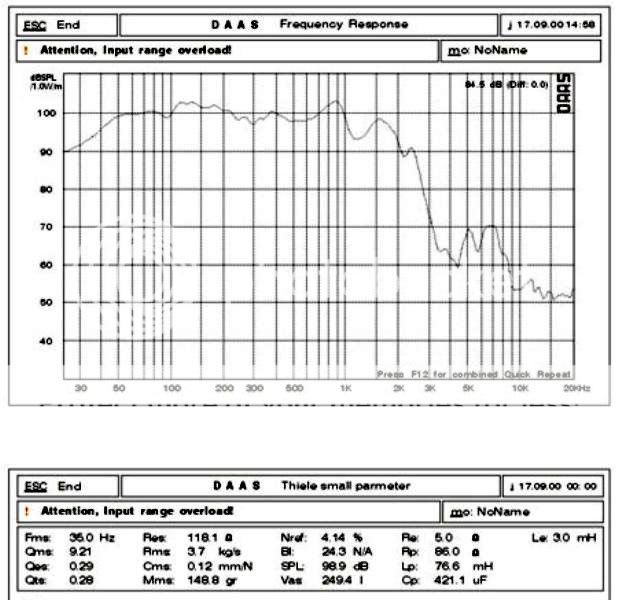

here is the specs of the SB18-5





-------------
Maximum Excursion

Don't criticize your own competition, it looks like a publicity of your own commercial products.


Posted By: MarjanM
Date Posted: 26 November 2008 at 11:07am
Can you give us a link to the manufacturer?
What is the price?


-------------
Marjan Milosevic
MM-Acoustics
www.mm-acoustics.com
https://www.facebook.com/pages/MM-Acoustics/608901282527713


Posted By: Centauri
Date Posted: 26 November 2008 at 12:19pm
A quick Google search : http://www.andeyinxiang.com.cn/eng/ArticleShow.asp?ArticleID=215


Posted By: Xmax extreme
Date Posted: 26 November 2008 at 5:37pm
thanks for the website centauri!Wink this product has only been referred to me but he gave me no website

-------------
Maximum Excursion

Don't criticize your own competition, it looks like a publicity of your own commercial products.


Posted By: MarjanM
Date Posted: 26 November 2008 at 6:23pm
What is the price?

-------------
Marjan Milosevic
MM-Acoustics
www.mm-acoustics.com
https://www.facebook.com/pages/MM-Acoustics/608901282527713


Posted By: Capitan Planet
Date Posted: 28 November 2008 at 10:39pm
HI
This project looks great for me, but my speaker is 18sound 18W1000 anybody can help me how to suit this speaker in this cabinet? can I please a plan modifications make it suitable for my speaker?

 a litle bit higher tuning frequency in bass reflex will be optimal, or what?

This plan mod is right for
18sound 18W1000 ?

Thanks for any help





Hi




Posted By: Xmax extreme
Date Posted: 29 November 2008 at 1:41am
Originally posted by MarjanM MarjanM wrote:

What is the price?

pm'd you mate


-------------
Maximum Excursion

Don't criticize your own competition, it looks like a publicity of your own commercial products.


Posted By: MarjanM
Date Posted: 29 November 2008 at 2:25am
Originally posted by Capitan Planet Capitan Planet wrote:

HI
This project looks great for me, but my speaker is 18sound 18W1000 anybody can help me how to suit this speaker in this cabinet? can I please a plan modifications make it suitable for my speaker?

 a litle bit higher tuning frequency in bass reflex will be optimal, or what?

This plan mod is right for
18sound 18W1000 ?

Thanks for any help



How did you come up with that mode?

18W1000 is a great driver and i am sure will play very well without any modification to the box. It is a driver made especially for horn loading.



Hi




-------------
Marjan Milosevic
MM-Acoustics
www.mm-acoustics.com
https://www.facebook.com/pages/MM-Acoustics/608901282527713


Posted By: mykey
Date Posted: 29 November 2008 at 10:15am

you can't just stick a driver in a hybrid and expect it to work marjanM

that box has been designed around a certain driver, just because a driver has hornloaded spec's doesn't mean it will work in a hybrid



-------------
......just all them hanging there like giant bananas.



Posted By: _djk_
Date Posted: 29 November 2008 at 11:23am
Driver equivalency check:

(Qts^2)*Vas should be within ±10% or better.

(Fs/Qts)*.312 should be within ±10% or better.

That will take about two minutes, then you can do a Hornresp design if you want a crosscheck.


-------------
djk


Posted By: Jake_Fielder
Date Posted: 29 November 2008 at 2:17pm
I'd have done a reflex box in winisd (or Hornresp) with the same port size and rear chamber as that design, and see how different the tuning frequency is for each driver, if they're close then it'll work just the same, if its out then do a slight mod on the port shelf length.

(although what you said DJK looks alot quicker. I havent come accross that before, cheers.)


Posted By: streetsounds
Date Posted: 30 November 2008 at 6:24am

How much is this drive xmax xtreme? nasubukan mo na ba to pards?


-------------
Bass matters...


Posted By: MarjanM
Date Posted: 30 November 2008 at 7:50pm
Originally posted by mykey mykey wrote:

you can't just stick a driver in a hybrid and expect it to work marjanM

that box has been designed around a certain driver, just because a driver has hornloaded spec's doesn't mean it will work in a hybrid



I am not talking about any driver.

I have spent enough time with 18W1000 and 18N401 to be sure that they are very similar and will work equal in the given box.

If we are talking about 0,5db deference at some frequency, than we are splitting hairs here.


-------------
Marjan Milosevic
MM-Acoustics
www.mm-acoustics.com
https://www.facebook.com/pages/MM-Acoustics/608901282527713


Posted By: Xmax extreme
Date Posted: 01 December 2008 at 4:50am
Originally posted by streetsounds streetsounds wrote:


How much is this drive xmax xtreme? nasubukan mo na ba to pards?

pre musta, i heard them personally in China last July,,,side by side with Paudio SD18 and was amazed with the results...drivers still coming before christmas is the target, ill keep you updated once arrived...


-------------
Maximum Excursion

Don't criticize your own competition, it looks like a publicity of your own commercial products.


Posted By: streetsounds
Date Posted: 02 December 2008 at 3:46am
from where are pre, who will be the distributor of this driver, do you think it be alright with 186 cab?

-------------
Bass matters...


Posted By: Xmax extreme
Date Posted: 02 December 2008 at 9:34am
Originally posted by streetsounds streetsounds wrote:

from where are pre, who will be the distributor of this driver, do you think it be alright with 186 cab?

Bro pm'd u...Smile


-------------
Maximum Excursion

Don't criticize your own competition, it looks like a publicity of your own commercial products.


Posted By: kiriiz
Date Posted: 18 February 2009 at 7:33pm
Hi all. Don't you think that this construction is the most multi-purpose cab of all? If not, why? This is hybrid, so you can use it indoor, outdoor, anyway. In small venues and big parties. And it has impressive sound pressure, especially when used 4 :) I need professionals to undestand where am i wrong)


Posted By: heinrich
Date Posted: 19 February 2009 at 2:57am
I have tried P audio C18 el on this and got good results on horn resp.......

-------------
.....power is nothing without control....


Posted By: kiriiz
Date Posted: 19 February 2009 at 9:20am
Cheap variant.. i'm interested. Can you show the plots?


Posted By: breakdabeat pete
Date Posted: 07 March 2009 at 8:31pm
has anyone made plots for any other drivers???

-------------
٩(̾●̮̮̃̾•̃̾)۶


Posted By: kiriiz
Date Posted: 08 March 2009 at 1:48pm
has anyone really heard this cab? Or built?Confused It seems to be good for any purpose use, very efficient and quick as horn and goes low as reflex


Posted By: Xmax extreme
Date Posted: 05 May 2009 at 9:04am



First...
I would like to thank Dennis and his wife Jonalyn for being so accomodating during my visit in thier place. I have a great stay there and enjoyed the food so much....Thumbs UpSmile

About Dens bass stacks...
Startec loaded with T&T AK18DSW....

WOW!!! Around 10 meters in front of the stack, pressure was too much! Hair raising bass, as fast as horn but with low end and sound fidelity of a reflex. It was a brutal experience facing the stacks.  The bass is well rounded even at only 2 cabs for these startec. More cabs add more SPL.

Hoping to do more business with you densWink....till my next visit....Smile


-------------
Maximum Excursion

Don't criticize your own competition, it looks like a publicity of your own commercial products.


Posted By: MarjanM
Date Posted: 05 May 2009 at 11:16am
What is T&T AK18DSW?

-------------
Marjan Milosevic
MM-Acoustics
www.mm-acoustics.com
https://www.facebook.com/pages/MM-Acoustics/608901282527713


Posted By: bitzo
Date Posted: 05 May 2009 at 2:55pm
xmax extreme have you ever heard the brute45? It's an 18" vented horn.


Posted By: Xmax extreme
Date Posted: 06 May 2009 at 9:32am
Originally posted by MarjanM MarjanM wrote:

What is T&T AK18DSW?


here's the details...
Brand Name : T&T
Model no. AK18DSW
Suspension : dual layer spider

Widely used in our place due to low cost but pretty durable for the price range...
ill post the parameters later...


regards


-------------
Maximum Excursion

Don't criticize your own competition, it looks like a publicity of your own commercial products.


Posted By: Xmax extreme
Date Posted: 06 May 2009 at 9:39am
Originally posted by bitzo bitzo wrote:

xmax extreme have you ever heard the brute45? It's an 18" vented horn.


hello mate, not yet heard those brute45Smile yeah its a hybrid horn too...


-------------
Maximum Excursion

Don't criticize your own competition, it looks like a publicity of your own commercial products.


Posted By: pietjepuk
Date Posted: 17 May 2009 at 6:04pm
is the H/R118 loaded with rcf driver by Startec better dan the 1850 horn loaded with void 18 v1000.





Posted By: kiriiz
Date Posted: 18 May 2009 at 9:07am
better for what?


Posted By: pietjepuk
Date Posted: 18 May 2009 at 12:17pm
for a alround system, indoor ,outdoor, big, small.

mainly for house, dance, hardtek, tek

are there some other plots from some one else



Posted By: Teunos
Date Posted: 19 May 2009 at 2:28pm
The plots will be the same, if you are pointing to the sims on the HR118 posted on here vs. your own.
(now going back to your earlier question) But 1850 is pure horn loaded only. While HR118 is a hybrid, meaning that the low end response comes from the port mainly. This will affect the ''throw'' (dus hoe ver het geluid draagt, ik neem aan dat je nederlands bent)>( So how far sound carries, assuming you are dutch) but also the sound of the horn. A horn will give you a much more thumpy, detailled bass response which is very distinqtive(not properly spelled or is it?LOL). So you will have to specify your music range very well, because horn loaded doesn't work for every type of music. (However this is only my vision)


-------------
Best regards,
Teun.


Posted By: nickyburnell
Date Posted: 19 May 2009 at 10:02pm

Nice analogyThumbs Up



-------------
It's everything, not everythink!


Posted By: dj-panoramix
Date Posted: 04 August 2009 at 5:18pm

so does anybody build it ??



Posted By: SonicXtasy
Date Posted: 12 December 2009 at 7:04pm
Does anyone have the hornresp input data for this cab?

-------------
The member formally known as vwbidder.


Posted By: SonicXtasy
Date Posted: 13 December 2009 at 3:35pm
nevermind, found it it the database sim postClown

-------------
The member formally known as vwbidder.


Posted By: samwills
Date Posted: 27 December 2010 at 3:46am
any one got any guesses.. on what a Fane collosus-1000 would be like in these (the only 18" drivers ive got) and cant afford any more XD..  especially as i want to build 4 of them to go with some jbl sp225-9's XD



Print Page | Close Window

Forum Software by Web Wiz Forums® version 12.05 - http://www.webwizforums.com
Copyright ©2001-2022 Web Wiz Ltd. - https://www.webwiz.net
