Topic: X15 build pics
Posted By: Phil.2008
Subject: X15 build pics
Date Posted: 03 March 2009 at 9:17am

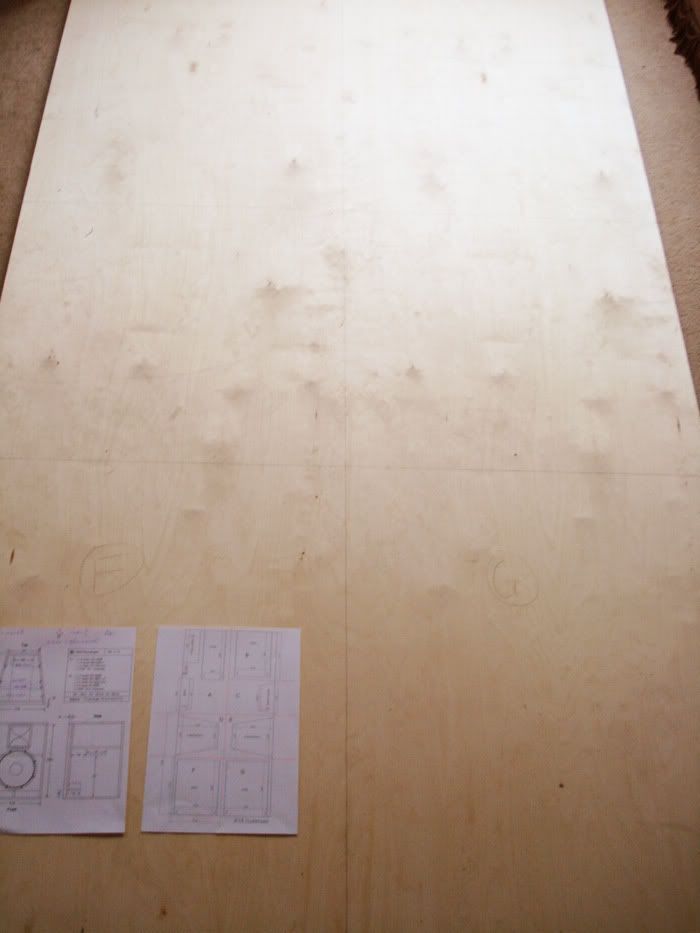

Marked out rough cuts



Rough cuts done



marking up

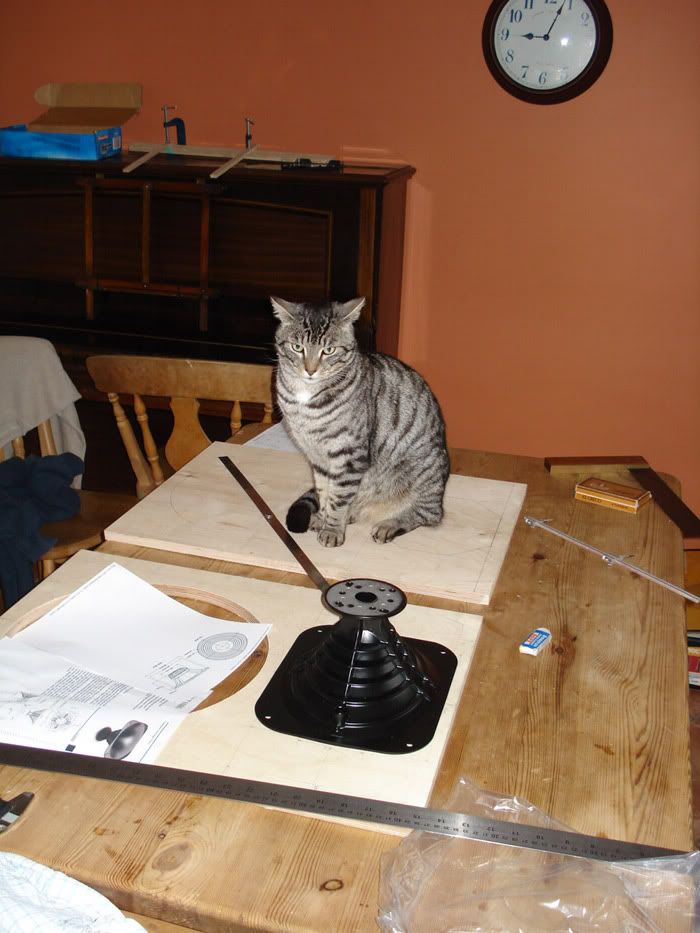

marking up baffles



testing router jig

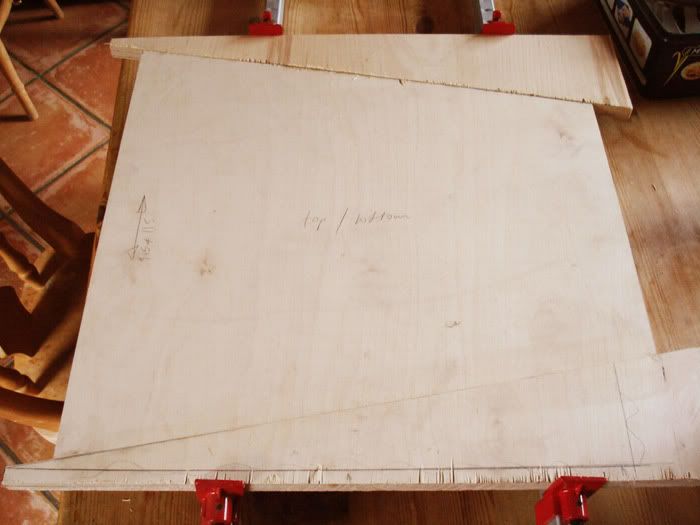

Gluing wood after making mistakes - did this on about three pieces... frustrating

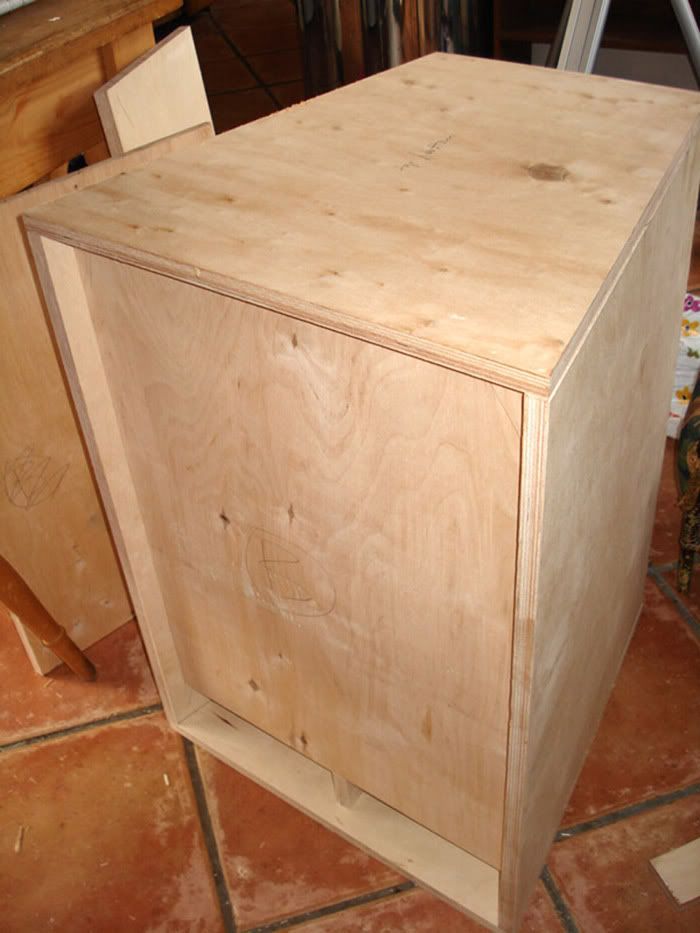

Panels put together. Pleased and relieved with how well they fit together

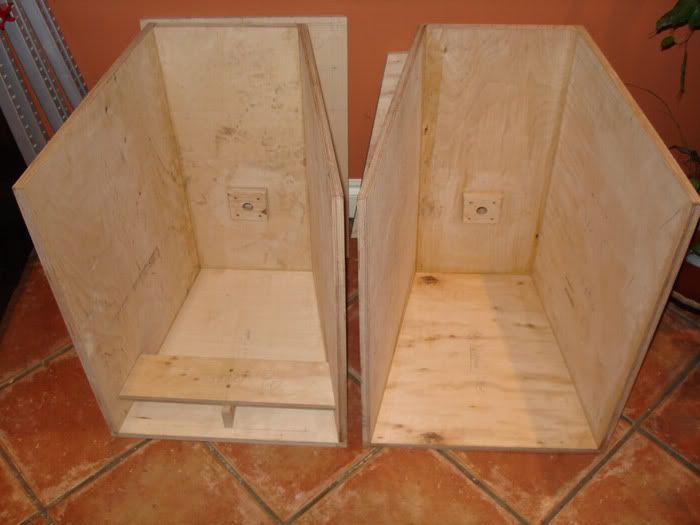

Current state, screwed and glued

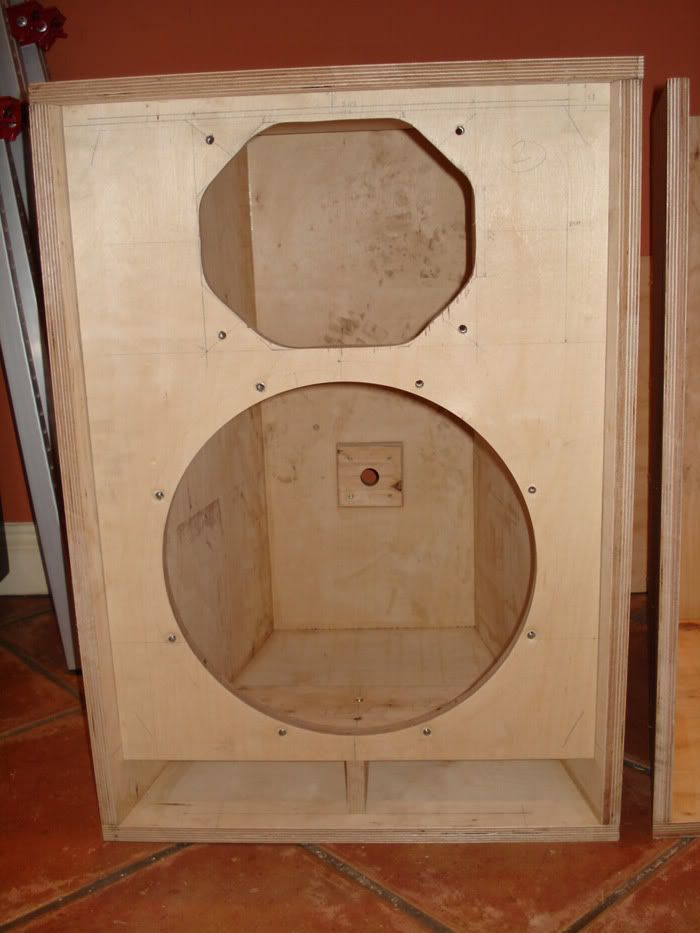

Most finished one, assembled (bar bracing)





Replies:
Posted By: Static Age
Date Posted: 03 March 2009 at 11:46am
Looking good Thumbs Up

-------------


Posted By: Dj Maca Roots
Date Posted: 05 March 2009 at 11:21pm
Nice job
What kind of paint job are you going to do?


-------------
Can't Stop Jah Music


Posted By: Phil.2008
Date Posted: 06 March 2009 at 11:01am
Thanks...

Paint will be Aldcroft black (if they ever respond to my email about prices)

Got the drivers loaded in to one of them last night.  There's a strange buzz coming through them when hooked up to the amp so I'm checking all the wiring today.  Apart from that though they're sounding good.

Turned it up and got a bit of power going through it... nice.  Made it all worth it.




Posted By: djcrude
Date Posted: 08 March 2009 at 7:51pm
Embarrassednyc one mate
wish i could be that tallented with woodwork!


Posted By: aperrado
Date Posted: 11 April 2009 at 5:14am
nice  build do u have a cutsheet for this cabinet  build   if yes where can I get that?

-------------
Im hard to learn but still asking


Posted By: Phil.2008
Date Posted: 11 April 2009 at 8:55am

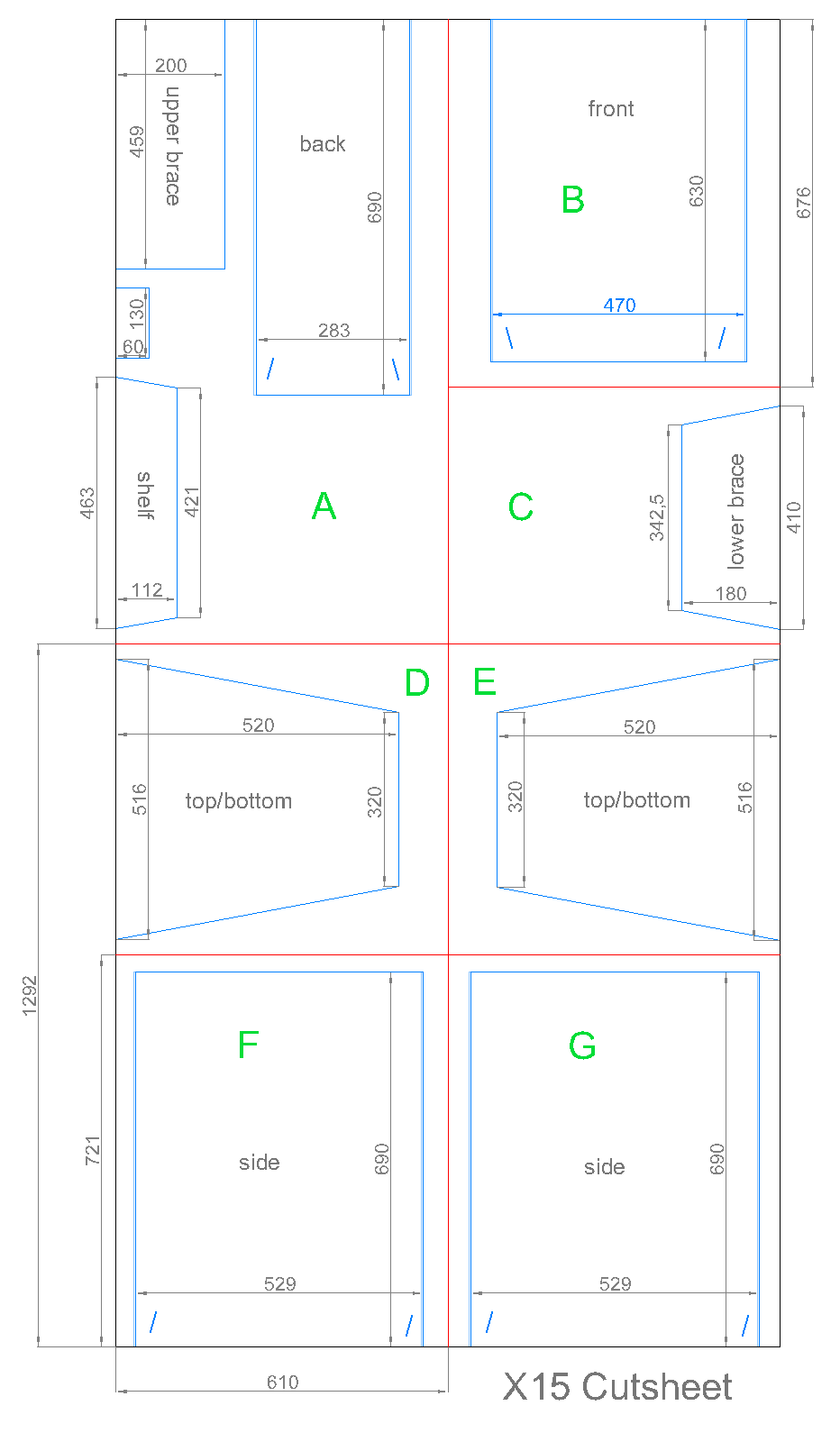

Yeah, here you are:



Note that the double lines denote an angled edge (cutting angle is 10.7 deg)

The blue "/" lines in the corners show you which way to cut the angled edge.  This works so that if you put the piece flat on a table and position it so that the the end with the two blue lines is facing you, then the way the line slopes at each corner is the way the saw blade slopes (looking down the line).

Also, one thing I found invaluable (which I wasn't sure was worth doing to begin with) is to mark all the pieces with a number, i.e. speaker 1 or 2, the letter of the piece, as on the cutsheet and which way is up and forward.


Posted By: wafflesomd
Date Posted: 16 April 2009 at 5:11pm
There's A LOT of wasted space in that cut sheet.


Posted By: Phil.2008
Date Posted: 16 April 2009 at 5:28pm
Originally posted by wafflesomd wafflesomd wrote:

There's A LOT of wasted space in that cut sheet.


Maybe, but given that there's no way I could fit two X15s on one sheet, I think it worked out alright.


Posted By: Phil.2008
Date Posted: 15 July 2009 at 10:15am
Just finished these last week - final pics:






Posted By: hmaudio
Date Posted: 15 July 2009 at 1:57pm
They look awsome, how they soundin?
love the grills btw Thumbs Up


-------------
Nottingham based cab builder. https://www.facebook.com/HMAudio-154352667920145/?ref=bookmarks
This account is used by 2 people.


Posted By: Phil.2008
Date Posted: 15 July 2009 at 2:45pm
Cheers.  They sound good.  I spent ages playing about with the crossover points and the gain structure on my DCX but I recon I've pretty much got it sounding how it should.  Not having owned/built any other PA cabs before I haven't got much by way of reference points though.

Grills are from Markie off this forum - I previously bought some B+C Sub18 cabs off someone else and they had the same grills on them, so now I've got a matching set.




Posted By: angus
Date Posted: 15 July 2009 at 4:51pm
Originally posted by Phil.2008 Phil.2008 wrote:

Originally posted by wafflesomd wafflesomd wrote:

There's A LOT of wasted space in that cut sheet.


Maybe, but given that there's no way I could fit two X15s on one sheet, I think it worked out alright.


Even if you can't get two cabs out of one sheet I think you should be aiming for the biggest single piece of scrap left over after your build to use with your new projects.

Can you please also list your driver choices and your xover settings as looks like you're running active and not using the recommended drivers?

Nice build and liking the (newer) ridged grills from markie :)

Cheers,
Angus


Posted By: Phil.2008
Date Posted: 15 July 2009 at 5:12pm
Subs = PD 18BR40 (700w) driver, But48/40Hz - But24/119Hz
Mids = P.Audio SN12MB (300w) driver, But24/119Hz - But24.1.38KHz
Tops = BMS 4544 (80w) driver on 18 Sound XT1086 horn, But24.1.38KHz - But40/20KHz


Posted By: Jake_Fielder
Date Posted: 15 July 2009 at 5:37pm
do you mean sn15mb?


Posted By: Ryan94
Date Posted: 15 July 2009 at 5:46pm
great build mate well done !!Thumbs Up


Posted By: Phil.2008
Date Posted: 15 July 2009 at 6:02pm
Originally posted by Jake_Fielder Jake_Fielder wrote:

do you mean sn15mb?


Yes, I do
