Topic: Car audio porn
Posted By: numtie
Subject: Car audio porn
Date Posted: 05 March 2009 at 5:17pm
Post your beloved car systems here (ill post mine when i find my camara)
give details of your system (head unit, amps, speakers etc...)


-------------
Disco Hire Wales



Replies:
Posted By: mad4mp3z
Date Posted: 11 March 2009 at 3:35pm
this is my sound system: it is all the same brand , theloudest , it consists of 1x8000w class d amp 2x3000w 12" sub's 1x3000 full range amp 2x1000w 6x9's a 5 farad power cap and 620 amp high power battery to power the beast and a sonichi s7000 dvd player as the head unit, oh and i got all this in a puggie 106 lmao i didnt get the dvd player for watching movies, its so i can burn a dual layer dvd with 8 gig's o music on it so i dont need 2 change cd's when i get board also meen's less disk's around the car 2 worry about






Posted By: numtie
Date Posted: 11 March 2009 at 3:52pm
crikey be nice to sse the install when its all in

-------------
Disco Hire Wales


Posted By: mad4mp3z
Date Posted: 11 March 2009 at 4:02pm
yeah ano, i had trouble getting both the sub's in as the 6x9's magnets dropped 2 low 2 allow both subs to fit in as seen in the pic's bellow but since then i have raised the parcel shelf and the magnets r not an issue, i unfortunatly popped 1 of the sub's so i need to send it away to get repaired so i only got the 1 in the boot just now but i will update when i get the other one in, u get the general idea with the pic's tho lol i have no boot anymore




^^^^ if i moved sub 2 left or right it touched magnets


Posted By: numtie
Date Posted: 11 March 2009 at 4:15pm
allthough saying that you have fallen into the of the ppmo trick basicky meaning your subs are 1000 watt rms and your 6x9 are 150 watt Ouch the amps on the other hand are very nice 8000 watt rms at 2 ohm hmmmmm lovley wish i had the cash to throw at my car

-------------
Disco Hire Wales


Posted By: numtie
Date Posted: 11 March 2009 at 4:19pm
may i suggest removing the parcell shelf alltogether and tint the windows to hide the speakers

-------------
Disco Hire Wales


Posted By: mad4mp3z
Date Posted: 11 March 2009 at 4:22pm
yeah ano i allway put the pmpo rather than rms, looks more impressive im actualy looking at new subs that r more compatable with the amp ( http://www.audioassault.co.uk/Subs/12%22_Subwoofers/Orion_HCCA-12.2_Subwoofer ) and the 6x9's still sound impressive so im gonna leave them just now till i see somthing a bit nicer , i actualy bought the sound system before i bought the car as i knew when i got a car i wouldnt beable to afford anything extreme still for now tho the sounds i have will have 2 do , still get baddass bass from them :D:D


Posted By: numtie
Date Posted: 11 March 2009 at 7:32pm
well here is my sub got a sony xplode 1200 amp running a vented reflex box loadid with an eminece delta 12 and well lets say its loud enougth the head unit is rubbish so gonna be replacing it soon as there surround well there all ford finest speakers lol but they sound ok as long as i dont pump bass through them (thats what the subs for)



-------------
Disco Hire Wales


Posted By: breakdabeat pete
Date Posted: 12 March 2009 at 1:28am
my mate got a 106 the other day
gona try and make him get a emi kappa 15 reflex for sub LOL



-------------
٩(̾●̮̮̃̾•̃̾)۶


Posted By: mad4mp3z
Date Posted: 12 March 2009 at 2:03am
looksa good man, will deffo do the deed, i replaced the front speakers i mine with sony components so they r a bit better than the originals, but as u sed the sub is for the bass so just treble the originals out :D


Posted By: Jay Lawless
Date Posted: 12 March 2009 at 7:26am
you want two of the 12" beasts in such a small cabin??? you're a mad man! Shocked

add 50-80lbs of sound deadening and it'll get even better.


-------------
Previously known as NeverWinter

Background: Automotive, Live and Home Custom Design. mid/high level based design and feild experience. Bass specialist


Posted By: mad4mp3z
Date Posted: 12 March 2009 at 9:59am
lmao bad man as in il b deaf 1 day or bad man as in its not good for the sub's ?? sound deadining?? i take its like sound proofing, im new 2 the forums and not up on car audio realy when it comes to ported box's n shiznay i know enough to get me by but that's it...
lol
shaun


Posted By: pfly
Date Posted: 12 March 2009 at 10:06am
If I'm ever going to install any speakers into my car, they are going to be at least something like this:

http://www.dynaudio.com/eng/auto/esotec/242gt.php - http://www.dynaudio.com/eng/auto/esotec/242gt.php

To be honest, I was expecting something cool with title "Car audio porn", and what I see here; typical 6x9s, talk about how cool PMPO ratings are and such. Not so impressed.


Posted By: mad4mp3z
Date Posted: 12 March 2009 at 2:05pm

all i said was the reason i say pmp coz it looks more impressive, never mentioned it being cool, i know its all down to rms but even at that the amp i have is 3000w rms and the other is 1000w rms i know the speakers aint up 2 sratch no need to badmouth the thread this is a audio forum so people should beable to talk whatever wattages the feel like without being put down i also said i intend on changing my speakers so whats the problem man ?? if you dont like the post dont comment on it just close it .



anyways any1 else want to show ther systems off??



Posted By: numtie
Date Posted: 12 March 2009 at 3:24pm
yarp dont dis the topic its only just startid! ps get ya sounds out!

Oh and if your really after some tasty audio porn take a gander at steve meads site he made a jeep with a 27k sound system in which had like 4 18" fi subs in and 2 t15k rockford fosgate amps in which he can get at least 160db out of it


-------------
Disco Hire Wales


Posted By: numtie
Date Posted: 12 March 2009 at 3:25pm
love to see a pair of hd's in some ones boot lol that would be insane

-------------
Disco Hire Wales


Posted By: wafflesomd
Date Posted: 12 March 2009 at 3:37pm
I put an x1 in the back of my friends SUV.

That was interesting.


Posted By: pfly
Date Posted: 12 March 2009 at 4:12pm
I've tried that too, X1 loaded with V18-1000 and driven by EP2500 into Saab 9-3 estate. Felt kind of funny.


Posted By: adambomb
Date Posted: 12 March 2009 at 4:13pm
I have hooked up 2 PD1850 loaded X1s in my Vito... great fun.. if a little overwhelming  while driving... get goood panel flex tho.

-------------
http://www.freespeakerplans.com" rel="nofollow - www.freespeakerplans.com


Posted By: mad4mp3z
Date Posted: 12 March 2009 at 5:36pm
this seems 2 have turned into more of a discution tread rather than ppl actualy posting pic's of there masterpeaces



Posted By: Jay Lawless
Date Posted: 18 March 2009 at 7:44am
mine's in the works. nothing big, just daily practical. no pictures due to the crap camera dieing on me and me spending too much money towards projects...

the setup:
2x Tang Bang W8-740P 8" subs driven by a JBL BPX500.1.
enclosures are two 12.75Liter reflex tuned to 36.6hz and designed based on specific vehicle's natural bass enhancement characteristics. F3 of 34hz and usable range of 36hz to 120hz. setup is fiber-glassed in the rear interior quarter paneling. my guess is probably 120-125db maximum potential... but then again, it's nothing too serious. the rest of the sound system is all OEM factory Pioneer headunit and full range drivers. last RTA test showed decent lines so no need to replace the stock full range system.


-------------
Previously known as NeverWinter

Background: Automotive, Live and Home Custom Design. mid/high level based design and feild experience. Bass specialist


Posted By: torch1
Date Posted: 19 March 2009 at 3:25pm
some of the build pics on my old car



















weighed the car down a fair bit!



unfortunately I haven't got any of the finished pics



Posted By: Static Age
Date Posted: 20 March 2009 at 11:48am
thats more like what i expected to see in a SP members car Thumbs Up

-------------


Posted By: torch1
Date Posted: 20 March 2009 at 3:11pm
Originally posted by Static Age Static Age wrote:

thats more like what i expected to see in a SP members car Thumbs Up


Wink


Posted By: Silas ))))))
Date Posted: 20 March 2009 at 5:53pm
some proper effort. Although i couldn't live without my boot

looks good tho


-------------
power in the blood


Posted By: LjudLahger
Date Posted: 20 March 2009 at 9:32pm






From my 205 gti.

The first one is my current system, 600wrms mono from Blaupunkt and a JBL 8" rated 200wrms, that's headroom...LOL

The last 2 pics is three Phoenix Gold 12" and a Audison amp with 1500 wrms at 1,33r. This gave me 143dB and a fryed generator...Embarrassed 55A was not enough so I had to get an 120A insted...Tongue


Posted By: Stray-Sounds
Date Posted: 22 March 2009 at 4:16pm
Wow that looks lush!

Heres my beast.. Just a bit of fun tho... Smile

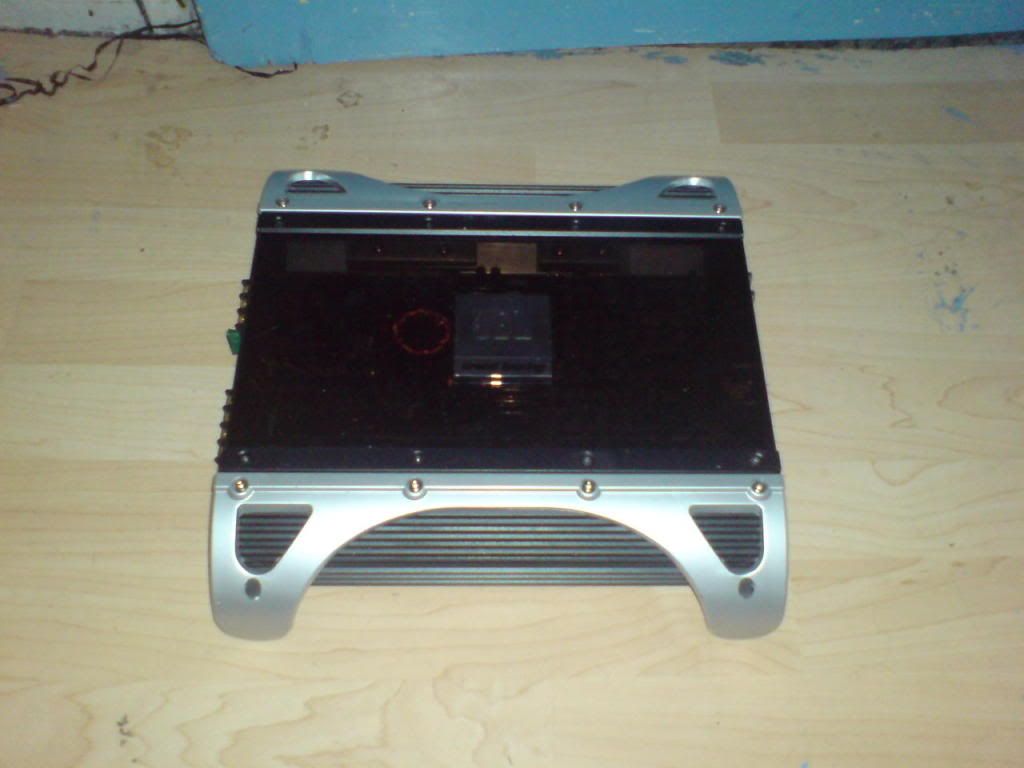

Got the sub and amp for 25 quid and my GF bought me the head unit for my bday.






-------------

<a href="http://www.soundhirewales.co.uk/">PA & Lighting - Sound Hire Wales</a>



Posted By: Phil.2008
Date Posted: 11 April 2009 at 10:22am
That's what I'm talking about.  Rusty Transit with 25-quid sub in it.  Loving it.


Posted By: Leo Brazil
Date Posted: 24 April 2009 at 2:47am
Here in Brazil, we like the sound dedicated to the public, so that we make our own party where and when we ...

2 Woofers Selenium WPU1505-X 600WRMS 8@ohms
2 Drivers Selenium D405 150WRMS
2 Tweeters Hinor 5hi300 100WRMS
1 Amplificador Taramp's 8500WRMS 1@ohm (usando em 4@ohms 2500WRMS)
1 Amplificador RS4410 4x100WRMS 4@homs








-------------
The search for perfect bass


Posted By: Stray-Sounds
Date Posted: 28 April 2009 at 8:43pm
My mates AX1














-------------

<a href="http://www.soundhirewales.co.uk/">PA & Lighting - Sound Hire Wales</a>



Posted By: Lord Baccus
Date Posted: 29 May 2009 at 10:55pm
here are a few of the things iv tried in my truck & Explorer
i have reserached as many subs as i could afford and allways came back too PAP for Superiour Build Quality and Duribality, Sound quality and beeing able too Wreck a few Ego's along the way...
here are a few of the subs iv played with in the last 3 yrs







































Well you get the point :)


-------------
Thank You for having a Nice Day


Posted By: Ryan94
Date Posted: 20 June 2009 at 8:32pm
wow you have quite a colection there!


Posted By: Lord Baccus
Date Posted: 21 June 2009 at 8:49am
I have allways believed that Stagnant water draws Masquito's

-------------
Thank You for having a Nice Day


Posted By: crystal.a
Date Posted: 25 June 2009 at 2:37pm
i run twin jl audio 12" off a jl a1400 class d amp then a pair of 6.5" jl components upfront with vibe k series 6x9's off a vibe slick a3 amp all gettin signal from an alpine ida-x001 mp3 head unit all in my 205 gti lookin to upgrade the vibe gear tho cos in my opinion it sounds very loud but very harsh prob go for more jl gear tbh as it sounds the nuts :)


Posted By: Big-G
Date Posted: 29 June 2009 at 2:38am
You cant go wrong with JL Big smile

-------------
They know what is what but they don't know what is what they just strut what the .


Posted By: FERTZ.BOY
Date Posted: 29 June 2009 at 2:56pm

hey everyone my first post i think woooh thought id add my little install in this small collection will add more of my other ones later

 all i as is people understand its a 1.5 diesal peugeot 106 nothing fancy lol

what we have is
2x pyramid 15" chrome things hey £30 on ebay 400 wrms each so not to bad
box built by me (for astra estate)  made it fit in the 106 lol about 1.5cf each chamber
one jbl gto 936e 100wrms (did have two but mate thought 30 was good ideah on my stereo when i had eveerything set to 20 lol so smoked and shreaded)
in replace of that i have an old alarm speaker from my mates old car so its hf only lol but it works suprisingly well :P
ampage
we have both pheonix gold xs amps (not a bad £50 spent i think) one i think is the 2300 two channel running 6x9 and ma hf unit and the other is the 4300 4 channel bridged to 2 running subs i havent got a clue on outputs but would be glad if someone could help

well reply with what you like just remember its a 106 diesel i bought for £80 tax and mot`d lol

ive tried adding pics but i dont understand how to do it help please


-------------
IF YOUR EARS AINT COVERED RUN


Posted By: FERTZ.BOY
Date Posted: 29 June 2009 at 7:30pm
HERE ARE THE PICS FROM MY PREVIOUS POST   I FIGURED IT OUT WOOOH


-------------
IF YOUR EARS AINT COVERED RUN


Posted By: Static Age
Date Posted: 29 June 2009 at 8:19pm
Its a smaller set up than most on here & some of the kit is quite old, but its just right for the application.

The cabin of the car is very small so one 12" sub is plenty for the bass.
The boot is shallow & a funny shape so i have to use a ported bass tube to house the driver, very handy having the strut brace there to strap it to.

The amp is an old JVC digifine, i have no idea of its power rating but its plenty loud enough. The power cap is 1 farad & it keeps up just fine.

The door speakers are the Kenwood factory upgrade offered by Toyota at the time, all three components still sound crisp 14 years down the line. there is also a pair of full range speakers in the rear quarter panels.

The signal comes from a very recent Alpine head unit via a pioneer paramic EQ.





















-------------


Posted By: FERTZ.BOY
Date Posted: 30 June 2009 at 10:27am
LIKING THE 6X9 STANDS ;p JUST WHAT I LIKE TO SEE

LOOKS COOL  AND NICE MOTOR

BLESS



-------------
IF YOUR EARS AINT COVERED RUN


Posted By: Static Age
Date Posted: 30 June 2009 at 10:50am
Thanks Big smile

The 6x9 stands have faded a bit over the years. I'll tidy them up with a fresh coat of paint soon.


-------------


Posted By: FERTZ.BOY
Date Posted: 30 June 2009 at 11:07am
HI I SEEN A FEW DIGNIFINE AMPS AND THEY RANGE FROM 130 RMS BRIDGE TO 300 SO DEPENDENT ON YOURS ID SAY ATLEAST 175 :D

-------------
IF YOUR EARS AINT COVERED RUN


Posted By: Static Age
Date Posted: 30 June 2009 at 11:22am
Its the biggest one i think, Its very heavy too. I'll get the model No off it later & do a search.

In terms of output it easily beats newer amps of a similar size. But like i said due to the small space inside the car high spl is achieved without a huge amount of watts.

There is a total of 11 speakers in that small space so the clarity is also very good, well for car audio.

I have a bigger set up in my van, pictured behind the car. Two 600 watt amps, four 6x9's & a large reflex box with two 15" subs. I'll get some pics up.

I have no desire for more gear in my car, horespower is more important than watts in that vehicle.


-------------


Posted By: FERTZ.BOY
Date Posted: 30 June 2009 at 11:53am
FOUND A PIC OF ANOTHER QUICK TEST INSTALL PIONEER TS-W3004SPL IN I THINK A 3 CUBE BOX ON MY BRUTUS AT 2 OHM SO WAS POWERED NICELY .

ALSO MY BABI FOCI THAT IS OFF THE ROAD AS BUILDING 2 6CF PORTED BOX`S TO HOME 2 15" L7`S RUNNING OFF MY 2600 WATT BRUTUS AT 1 OHM WITH 3 FARAD CAP  0 GAUGE WIRE KITT TB3 UPGRADE AND MONSTER CABLE SIGNALS (THANX BOOMA) JUST IN MARKET FOR DECENT BATTERY AND HI OUT ALTINATOR ITS GOONA BE GOOOOODDDDDD



-------------
IF YOUR EARS AINT COVERED RUN


Posted By: FERTZ.BOY
Date Posted: 30 June 2009 at 2:58pm
MY LITTLE IN DOOR SOUNDS LOL CHEAP SUB WITH FOSTEX TWEETERS DAMMN THEY WERE LOUD
THE UPGRADED SUB WITH THE 75.2 AMP BELOW

BELOW A QUICK BOOT INSTALL THE BEGGINING AND THE FINISHED SET 100000% BETTER I SAY

NEXT THE DOOR CARD USED THE SAME FELT AS BOOT INSTALL LOOKS ALOT TIDYER


NEXT IS SOME REALLY GOOD ONES :D
THE OLD INSTALL IN THE FOCI NOW MATE HAS IT IN HIS FIESTA


NOW MY FAVE OF EVERYTHING LOL

THE NEW STUFF FOR THE FOCUS INSTALL

ALL 2008 BRAND NEW WHEN I BROUGHT IT ONE OF THE FIRST WITH THE 2608 BRUTUS AND L7`S


WHAT YOU THINK ???

IF I FIND MORE I SHALLL ADD THEM :p


-------------
IF YOUR EARS AINT COVERED RUN


Posted By: DarkTari
Date Posted: 30 June 2009 at 5:14pm
Okay, I'm the new kid on the block so I'll post my latest work..... Scion xB "Da Toasta"

Project STEALTH.....   shhhhh!

1st I gotta give you mugs a lil STRIP TEASE......  "Music" !


Now b4 you TURN IT Uuuuup, Ya gotta quiet it down with eDead 80ml & DynaTape......

And don't forget to stuff those Nooks & Crannies with PolyFill....


Now it's time to add your spagetti and route it out.....

So now I guess it's about time go get this shiggity back together......

Okay, now for part 2, Let get it all back together & Stealth it Up :

Pioneer AVH-P400DVD HU

Infinity 5350a 5 Channel Amp

JBL GTO427's in Dash

JBL GTO627 in rear 1/4 panels



JBL GTO637 in front doors


Pioneer TS-SW841D Sub in spare tyre
And I get to keep all my original trunk space.....
http://memimage.cardomain.com/ride_images/3/2625/501/31560250140_large.jpg -
See more oftheToasta :   http://www.cardomain.com/ride/3156025 - http://www.cardomain.com/ride/3156025



-------------
DarkTari
"TURN IT Uuuuup"


Posted By: tommysb
Date Posted: 30 June 2009 at 6:23pm
Looks like you're doing a proper job, well done!


Posted By: DarkTari
Date Posted: 30 June 2009 at 6:56pm
Originally posted by tommysb tommysb wrote:

Looks like you're doing a proper job, well done!
Thank You !  It's been a long road, mainly cause I'm sorta an anal perfectionist, so even though you don't see it, it has to look just as good under the carpet as it does on top.  I did a lotta research during the planning stages and been gathering equipment since Nov 08.
Question:
I have a solid woofer box :

Does this box need to be ported ?


-------------
DarkTari
"TURN IT Uuuuup"


Posted By: mace.ben
Date Posted: 01 August 2009 at 7:02pm
Is the trye still on the rim?


Posted By: DarkTari
Date Posted: 01 August 2009 at 10:25pm
Originally posted by mace.ben mace.ben wrote:

Is the trye still on the rim?
The spare Tyre is turned upside down and the sub box drops right in ....

-------------
DarkTari
"TURN IT Uuuuup"


Posted By: brokenjoe
Date Posted: 01 August 2009 at 10:34pm
check this honda SMX out ..

http://cgi.ebay.co.uk/HONDA-SMX-AUDIOBAHN-MODIFIED-SOUND-OFF-MINI-MPV-o_W0QQcmdZViewItemQQ_trksidZp3286Q2ec0Q2em14QQhashZitem27a9c2b852QQitemZ170351835218QQptZAutomobilesQ5fUKQQsalenotsupported

i can't link to the pics sorry. .  .


Posted By: BP1Fanatic
Date Posted: 02 August 2009 at 1:36am
This is my 1st post! I Heart this site Thumbs Up
1996 Ford Ranger XLT Supercab
Kicker 08S15L74 & Boston Acoustics GT-42
Front
Driverside
Passengerside
65hz sample

500 watt SPL
Input
Schematic
SPL
Kicker 08S15L74 Horn


Posted By: workidz
Date Posted: 17 August 2009 at 3:58am
would never have imagined building an enclosure like that into a car :P


Posted By: BP1Fanatic
Date Posted: 27 August 2009 at 9:41pm
I like being different Thumbs Up


Posted By: ash pegs
Date Posted: 19 October 2009 at 11:20pm
the system I put in my 2005 hyundai coupe









subs are 400wrms each and 91dB sensitivity, but the specs of the amp don't seem to add up at all so I've concluded that they are all complete lies!


-------------
don't forget the cables


Posted By: _Adrian_
Date Posted: 11 November 2009 at 11:17pm
The plugs on the back of that hyunday deck looks a lot like a VAG plug !!


Posted By: joshd963
Date Posted: 28 November 2009 at 5:38pm
i did want to put a generator and a small stack in the back of a covered pickup

then i came back to my senses


Posted By: numtie
Date Posted: 29 November 2009 at 4:45pm
model of amps and speakers you may find you will get more out of the speakers if you wire them in series

-------------
Disco Hire Wales


Posted By: ash pegs
Date Posted: 01 December 2009 at 1:17pm
Originally posted by numtie numtie wrote:

model of amps and speakers you may find you will get more out of the speakers if you wire them in series
Thanks but surely this would result in less power through each coil - I might give it a try anyway to see if it makes any difference to the sound quality - atm I have to keep the subs turned right down so they don't completely drown everything else out, I certainly don't need any more volume from the sub than I've already got.

The amp is a Juice JA690 and the subs are Audiobahn AW1251T

Need to upgrade the front comps next but I want to keep them run off the head unit, was thinking about these jbls

http://www.caraudioni.com/index.php?main_page=product_info&cPath=145_70_137&products_id=2559 -



Posted By: Big-G
Date Posted: 03 December 2009 at 3:29pm
Originally posted by _Adrian_ _Adrian_ wrote:

The plugs on the back of that hyunday deck looks a lot like a VAG plug !!

Just a standard ISO connector


-------------
They know what is what but they don't know what is what they just strut what the .



Print Page | Close Window

Forum Software by Web Wiz Forums® version 12.08 - https://www.webwizforums.com
Copyright ©2001-2026 Web Wiz Ltd. - https://www.webwiz.net
