Topic: ----Show Off Your Heftiest Woofer-----
Posted By: rich_gale
Subject: ----Show Off Your Heftiest Woofer-----
Date Posted: 15 June 2010 at 8:53pm
i just picked up a nice 12" woofer.  An oldschool cerwin vega stroker 12" woofer.  though a car audio driver, it shares a lot of features found on pro audio drivers.  the 11.5mm xmax, high motor strength and strong cone and 95db/1w sensitivity should give me a great output once i decide on a suitable cabinet.




she has a rather hefty looking motor structure im sure you will agree!




-------------
REFLEX ALL THE WAY.... (however, im playing with horns again...) That ok Mister Valiant? :)



Replies:
Posted By: SamV
Date Posted: 15 June 2010 at 9:28pm
If you want hefty...


RE Audio XXX12. doggy poo loads of fun. But not that efficient but by god it drops low and sounds quite good.


Posted By: torch1
Date Posted: 16 June 2010 at 10:31am
I've got 2 x RE XE 15's which are pretty hefty too. Tripple stack magnets. Two of them was a bit much for a hatchback tbh LOL


Posted By: Saul
Date Posted: 16 June 2010 at 11:01am
one way excursion of 22mm !!! nutters


Posted By: JR.junior
Date Posted: 16 June 2010 at 11:45am

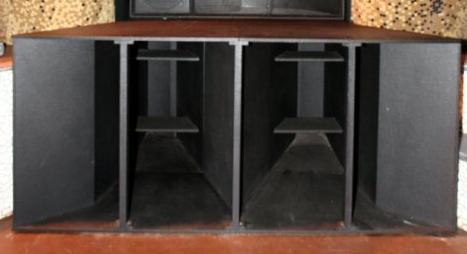

nah..this is hefty! Party



-------------
Support the scoop technology, larger mouth plays louder!


Posted By: torch1
Date Posted: 16 June 2010 at 11:56am
The MTX Jackhammer has to win this competition:



http://www.mtx.com/caraudio/products/subwoofers/jackhammer.cfm - http://www.mtx.com/caraudio/products/subwoofers/jackhammer.cfm

  • 6,000 RMS, 12,000 peak music power

  • 23" tall

  • 369 lbs.

  • 900 ounce strontium ferrite magnet with extended magnetic field gap technology

  • Carbon fiber and glass fiber dust cap with aluminum honeycomb center

  • Expanded polypropylene cone with mica filler for reduced mass and increased stiffness

  • FEA designed progressive roll spider with 10 AWG integrated tinsel leads woven in to allow for 2.5” of linear cone movement one way

  • Aluminum shorting ring

  • 6.5” voice coil with 17 AWG high temperature aluminum wire in a flat wound, long-excursion design incorporating 2.5” of Xmax






Posted By: Saul
Date Posted: 16 June 2010 at 12:34pm
it does beg the question tho....why?


Posted By: djyves
Date Posted: 16 June 2010 at 1:49pm
Originally posted by torch1 torch1 wrote:

The MTX Jackhammer has to win this competition

I don't think so:



-------------
"If brute force doesn't work, you're just not using enough!"


Posted By: djyves
Date Posted: 16 June 2010 at 1:51pm



-------------
"If brute force doesn't work, you're just not using enough!"


Posted By: torch1
Date Posted: 16 June 2010 at 2:30pm
There's always one LOL


Posted By: SamV
Date Posted: 16 June 2010 at 2:40pm
Trouble is though that the jackhammer sounds doggy poo. Whereas the RE is wide accepted to be  a fantastic SQL driver. It'll go lower and louder and sound better than the MTX.


Posted By: torch1
Date Posted: 16 June 2010 at 3:24pm
Originally posted by SamV SamV wrote:

Trouble is though that the jackhammer sounds doggy poo. Whereas the RE is wide accepted to be  a fantastic SQL driver. It'll go lower and louder and sound better than the MTX.


Yep, I love mine.


Posted By: Oscar
Date Posted: 16 June 2010 at 4:24pm
back to the original post, thats a nice speaker you got there....I got one just like it, although I need to take better pics of it Smile




Posted By: SamV
Date Posted: 16 June 2010 at 5:04pm
It's a CV stroker isn't it?


Posted By: Oscar
Date Posted: 16 June 2010 at 6:09pm
yup, both mine and rich_gale's...just from different angles Smile


Posted By: SamV
Date Posted: 16 June 2010 at 6:11pm
Wait I don't see what the big deal is, didn't rich have an 18" Stroker not so long ago?


Posted By: Oscar
Date Posted: 16 June 2010 at 6:14pm
good question...if he did, what did he do with it?.....I have two 18s here, one in need of recone'ing....top plate is huge on these suckers


Posted By: SamV
Date Posted: 16 June 2010 at 6:19pm
He built it into a 12v rig if I'm not mistaken :)


Posted By: Oscar
Date Posted: 16 June 2010 at 7:01pm
thats cool.....here is a pic of one of my 18" strokers next to the 12" stroker:




the top plate on the 18" comes in at a full 1" thick

here's one of the 12" stroker (which shares the same motor with the 15" version) next to a Eminence Kilomax 15":



the Kilomax pales in comparison lol


Posted By: rich_gale
Date Posted: 16 June 2010 at 10:46pm
the stroker 18 top plate is immense.  i did have a stroker 18 - but it was a pro audio variant.  8ohm, 10mm top plate (instead of 25mm).  it had a lot lighter cone and less power handling.  spl/1w was over 100db/1w.  model number was 189sc .

@ oscar: i notice your front spider mount is pushed a few mm further down the spindle than mine.  did yours come like this from the factory?


-------------
REFLEX ALL THE WAY.... (however, im playing with horns again...) That ok Mister Valiant? :)


Posted By: Oscar
Date Posted: 17 June 2010 at 1:42am
actually it did come like this, but it was not bought new...i bought it used from Ebay....once I found the site www.cerwin-vega-fans.com, i found some pics of brand new stroker 12s and I saw that the top spider was biased just a tad higher than mine, so I've adjusted mine sinc:




Posted By: jazomir
Date Posted: 17 June 2010 at 10:22am
Always impressed by the JTR Growler drivers - they look so mean (1000w AES/2000w program) yet at the same time so damned neat:
http://jtrspeakers.websitetoolbox.com/post/show_single_post?pid=36131677&postcount=27 - http://jtrspeakers.websitetoolbox.com/post/show_single_post?pid=36131677&postcount=27


-------------
For sidefills, can we have two enormous things of a type that might be venerated as Gods by the inhabitants of Easter Island, capable of reaching volumes that would make Beelzebub soil his pants.


Posted By: Oscar
Date Posted: 17 June 2010 at 3:15pm
Originally posted by jazomir jazomir wrote:

Always impressed by the JTR Growler drivers - they look so mean (1000w AES/2000w program) yet at the same time so damned neat:
http://jtrspeakers.websitetoolbox.com/post/show_single_post?pid=36131677&postcount=27 - http://jtrspeakers.websitetoolbox.com/post/show_single_post?pid=36131677&postcount=27


thats definitely a nice looking driver, especially with that new 4" voice coil...do they sell those drivers outright?


Posted By: rich_gale
Date Posted: 17 June 2010 at 8:37pm
hey oscar.  please can you check something for me..

if you unscrew the three allen head bolts on the back plate of your blown stroker 18, does it allow you to remove the back plate?  or is it glued?

i have another stroker with some rust buildup in the vc gap and i want to see if its possible to get at the vc gap to clean it up without a full reconing


-------------
REFLEX ALL THE WAY.... (however, im playing with horns again...) That ok Mister Valiant? :)


Posted By: asaa00
Date Posted: 17 June 2010 at 9:13pm
a mod or the OP should rename this thread "-=SHOW OFF YOUR DRIVERS=-" and just keep the pics comin'guys......

-------------
http://soundcloud.com/asaa - My Studio Productions


Posted By: rich_gale
Date Posted: 17 June 2010 at 9:18pm
Originally posted by asaa00 asaa00 wrote:

a mod or the OP should rename this thread "-=SHOW OFF YOUR DRIVERS=-" and just keep the pics comin'guys......

fixed.  would be nice to see shots showing off the mechanics of all the main drivers.


-------------
REFLEX ALL THE WAY.... (however, im playing with horns again...) That ok Mister Valiant? :)


Posted By: RosscoPico
Date Posted: 17 June 2010 at 9:35pm

Massive Audio subs look good (for car subs) IMO:




-------------
.:ELEMENT 5 SYSTEMS:.


Posted By: djshaney
Date Posted: 17 June 2010 at 9:50pm
why do all car audio companies have such cheesy names LOL


Posted By: JR.junior
Date Posted: 17 June 2010 at 10:26pm
CV-Stroker Pro 12"!



-------------
Support the scoop technology, larger mouth plays louder!


Posted By: Sinfinity

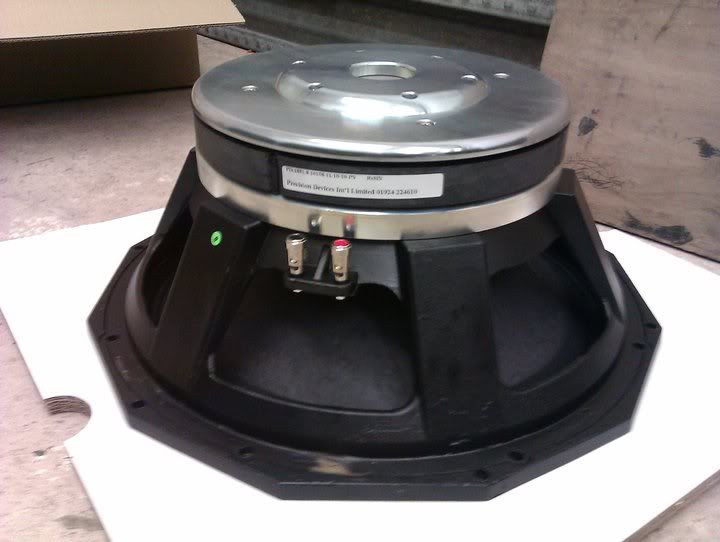

Date Posted: 17 June 2010 at 10:29pm


Big woofer


-------------
Matt at ukamp dot co dot uk


Posted By: JR.junior
Date Posted: 17 June 2010 at 10:38pm
Hug EPIC!!
Posted Image


-------------
Support the scoop technology, larger mouth plays louder!


Posted By: asaa00
Date Posted: 17 June 2010 at 11:16pm
Originally posted by rich_gale rich_gale wrote:

Originally posted by asaa00 asaa00 wrote:

a mod or the OP should rename this thread "-=SHOW OFF YOUR DRIVERS=-" and just keep the pics comin'guys......

fixed.  would be nice to see shots showing off the mechanics of all the main drivers.

hahahaha good woofer pooClap


-------------
http://soundcloud.com/asaa - My Studio Productions


Posted By: rich_gale
Date Posted: 18 June 2010 at 7:43am
Originally posted by JR.junior JR.junior wrote:

Hug EPIC!!
Posted Image

i just died.Clap


-------------
REFLEX ALL THE WAY.... (however, im playing with horns again...) That ok Mister Valiant? :)


Posted By: Oscar
Date Posted: 18 June 2010 at 9:33pm
so when it says "show off YOUR heftiest woofer", shouldn't it be woofers that people actually own, instead of just showcasing what people can find on the internet? Smile


Posted By: Oscar
Date Posted: 19 June 2010 at 4:01am
Originally posted by rich_gale rich_gale wrote:

hey oscar.  please can you check something for me..

if you unscrew the three allen head bolts on the back plate of your blown stroker 18, does it allow you to remove the back plate?  or is it glued?

i have another stroker with some rust buildup in the vc gap and i want to see if its possible to get at the vc gap to clean it up without a full reconing


good question.....I have not been able to check that since my tiny allen wrenches will not allow enough leverage to loosen those bolts.....what's preventing you from checking yours?


Posted By: rich_gale
Date Posted: 19 June 2010 at 9:42am
i dont want to go losening them and ruining the coil of a woofer that might not need a recone.  if i can get to it easy i can clean and vacuum out the vc gap from the back.  otherwise i think i might open up the central spindle hole (in the center of the front spider) a bit with a scalpel and get a thin vacuum nozzle in there while running a 20hz signal free air.  i will make the hole in the front spider small enough so it is covered back up once the centering ring is screwed back in place.

its not a terrible rubbing noise from the rust, but enough to annoy me.

any ideas before i go and order a recone kit?


-------------
REFLEX ALL THE WAY.... (however, im playing with horns again...) That ok Mister Valiant? :)


Posted By: csg
Date Posted: 19 June 2010 at 10:10am
You can always remove the current cone complete - providing cerwin vega use a rubber based glue for the suspention part
by using a slovent such as acetone and a lot of patience, it is possible usually to remove the cone and coil complete and undamaged, do your clean up, and then re-cone using your old kit

i have done this on jbl e series and HH drivers in the past which suffer from gap corrosion


Posted By: Oscar
Date Posted: 19 June 2010 at 3:42pm
Originally posted by csg csg wrote:

You can always remove the current cone complete - providing cerwin vega use a rubber based glue for the suspention part
by using a slovent such as acetone and a lot of patience, it is possible usually to remove the cone and coil complete and undamaged, do your clean up, and then re-cone using your old kit

i have done this on jbl e series and HH drivers in the past which suffer from gap corrosion


unfortunately the strokers use some kind of hardening adhesive, perhaps akin to an epoxy...i've tried acetone on my blown 18" stroker, and it wont do anything to it...it will have to be removed by physical means like scraping

rich, i'll see what I can do to try and get those bolts off


Posted By: rich_gale
Date Posted: 20 June 2010 at 12:38pm
cheers for the input guys.  i think i might have a go with some gunwash or cellulose thinners.  i know gunwash does well on contact adhesive but it needs a good soak to break it down.

-------------
REFLEX ALL THE WAY.... (however, im playing with horns again...) That ok Mister Valiant? :)


Posted By: Tony Wilkes
Date Posted: 20 June 2010 at 1:08pm



Posted By: rich_gale
Date Posted: 20 June 2010 at 4:00pm
yikes.  is that an aurasound 'neo-radial' licenced design?  underhung?

-------------
REFLEX ALL THE WAY.... (however, im playing with horns again...) That ok Mister Valiant? :)


Posted By: RosscoPico
Date Posted: 20 June 2010 at 4:09pm

Originally posted by rich_gale rich_gale wrote:

yikes.  is that an aurasound 'neo-radial' licenced design?  underhung?

Nope! Read what it says on the box it's sitting onWink



-------------
.:ELEMENT 5 SYSTEMS:.


Posted By: IanD
Date Posted: 20 June 2010 at 4:49pm
Originally posted by RosscoPico RosscoPico wrote:

Originally posted by rich_gale rich_gale wrote:

yikes.  is that an aurasound 'neo-radial' licenced design?  underhung?

Nope! Read what it says on the box it's sitting onWink



BMS18N860 ;-)

(I've got a Seismic 8196 which is a modified Aura 1808 with 1100W power handling, I'll post a picture next time we get the band's rig out)


Posted By: Tony Wilkes
Date Posted: 21 June 2010 at 4:55pm
Originally posted by IanD IanD wrote:



BMS18N860 ;-)



Ian  Thumbs Up

Still prefer the 850's but I am going to try the 860's in some IB boxes.

Tony


Posted By: S DeXter
Date Posted: 21 June 2010 at 6:40pm
Originally posted by Tony Wilkes Tony Wilkes wrote:

Originally posted by IanD IanD wrote:



BMS18N860 ;-)



Ian  Thumbs Up

Still prefer the 850's but I am going to try the 860's in some IB boxes.

Tony


I think the 860 would make a really great studio sub, would have thought the 850 is more suited to pro sound boxes...


-------------
Enjoy your self...... It's later than you think.......


Posted By: patrickmaximum
Date Posted: 21 June 2010 at 8:19pm
Atomic 12´´

Dc Audio - level 5  10´´

lms - 18´´Shocked

LOL



http://img28.imageshack.us/img28/5781/1155800280large.jpg -

http://img441.imageshack.us/img441/6687/dsc02524zj.jpg">

http://img580.imageshack.us/img580/3666/mijn15.jpg">

http://img97.imageshack.us/img97/1249/lms1.jpg">


-------------
Patrick_Maximum


Posted By: rich_gale
Date Posted: 21 June 2010 at 8:44pm

thats hilariously hefty.  are those magnets wider than the frames?


-------------
REFLEX ALL THE WAY.... (however, im playing with horns again...) That ok Mister Valiant? :)


Posted By: patrickmaximum
Date Posted: 21 June 2010 at 10:22pm
yess  LOL  like  the DC audio  lvl 5   10''

-------------
Patrick_Maximum


Posted By: cilla.scope
Date Posted: 02 November 2010 at 2:01pm
Worst thing is .. I reckon that BMS 18" neo would crap all over those "ooh, look what a big chrome plated magnet I've got"  car speaker jobbies ... as with anything related to car willy measuring competetitions, they always look more impressive than they actually are .. I bet if you loaded them up on a real amplifier, they woul crap out at a few hundred watts.

-------------
My girlfriend thinks I'm a stalker.
Well, she's not exactly my girlfriend yet ...


Posted By: Strange Daze
Date Posted: 03 November 2010 at 2:42pm




:-)


Posted By: kay-singh
Date Posted: 03 November 2010 at 2:57pm

Ascendant audio 18" SMD


Posted By: rich_gale
Date Posted: 03 November 2010 at 8:41pm
wow.  concentric dual magent/vc?

-------------
REFLEX ALL THE WAY.... (however, im playing with horns again...) That ok Mister Valiant? :)


Posted By: JohnnyPyro
Date Posted: 03 November 2010 at 11:23pm
heres my buggers http://www.orioncaraudio.com/Products/Product.aspx?ProductID=514 - http://www.orioncaraudio.com/Products/Product.aspx?ProductID=514    2 sat in the loft ... wish i hadnt bought a sports car now lol

-------------
Pyrotechnics... its not rocket science, well.... actually it is !! :o)
Powered by MC2 & XTA


Posted By: subbass
Date Posted: 03 November 2010 at 11:28pm
Originally posted by JohnnyPyro JohnnyPyro wrote:

heres my buggers http://www.orioncaraudio.com/Products/Product.aspx?ProductID=514 - http://www.orioncaraudio.com/Products/Product.aspx?ProductID=514    2 sat in the loft ... wish i hadnt bought a sports car now lol

lol

SPECIFICATIONS

Model NumberHCCA152
Power(RMS/Peak)2000 Watts/4000 Watts
Fs (Hz)31
Qts0.59
Vas (cu ft)"2.629
Sensitivity30dB
Mounting Hole Diameter (Inches)15.6
Mounting Depth (Inches)12


Posted By: JohnnyPyro
Date Posted: 03 November 2010 at 11:35pm
yeah i think someone seriously cocked up there ... 30db sens lolol

-------------
Pyrotechnics... its not rocket science, well.... actually it is !! :o)
Powered by MC2 & XTA


Posted By: RosscoPico
Date Posted: 10 January 2012 at 7:33pm

I must say, I was bit excited when I unpackaged these new carbon drivers which came from Italy;


They're sexy eh!



-------------
.:ELEMENT 5 SYSTEMS:.


Posted By: spongebob
Date Posted: 10 January 2012 at 7:58pm
AA SMD 18 (I dont own one, but boy I wish I did)





Got voicecoil?


Posted By: jerronimo
Date Posted: 10 January 2012 at 8:10pm
That's a nice looking driver Smile
B&C ?


Posted By: RosscoPico
Date Posted: 10 January 2012 at 8:24pm

Nope, it's an Eighteensound 18NLW9600C

http://www.eighteensound.com/index.aspx?mainMenu=view_product&pid=304" rel="nofollow - http://www.eighteensound.com/index.aspx?mainMenu=view_product&pid=304

I wasn't expecting a carbon dust cap as the website shows a different looking driver...anyway I'm not complaining!  Cool thing is that it's got a aluminium voice coil for very high power handling.


Spongebob - sure that seriously is a big voice coil eh!



-------------
.:ELEMENT 5 SYSTEMS:.


Posted By: RosscoPico
Date Posted: 10 January 2012 at 8:43pm

You could say these are more hefty though, the 18sound 21NLW9600;

Bathing together in the sunshine :)

And upside down;




-------------
.:ELEMENT 5 SYSTEMS:.


Posted By: GEB
Date Posted: 10 January 2012 at 9:13pm
Originally posted by cilla.scope cilla.scope wrote:

Worst thing is .. I reckon that BMS 18" neo would crap all over those "ooh, look what a big chrome plated magnet I've got"  car speaker jobbies ... as with anything related to car willy measuring competetitions, they always look more impressive than they actually are .. I bet if you loaded them up on a real amplifier, they woul crap out at a few hundred watts.

There's a video on youtube of a run of the mill atomic driver connected up to the mains 220-240vac, not sure what that equates to watts wise? Anyone?


Posted By: Peter Jan
Date Posted: 10 January 2012 at 9:58pm
About 6.5kW for an 8 Ohm speaker. That makes it a noisy, shivering and inefficient stove I guess LOL


Posted By: MarjanM
Date Posted: 10 January 2012 at 10:02pm
Originally posted by RosscoPico RosscoPico wrote:

I must say, I was bit excited when I unpackaged these new carbon drivers which came from Italy;


They're sexy eh!


Which boxes will those be in?


-------------
Marjan Milosevic
MM-Acoustics
www.mm-acoustics.com
https://www.facebook.com/pages/MM-Acoustics/608901282527713


Posted By: Father-Francis
Date Posted: 10 January 2012 at 10:31pm
he put the link it should be these ones here  http://www.eighteensound.com/index.aspx?mainMenu=view_product&pid=304" rel="nofollow - http://www.eighteensound.com/index.aspx?mainMenu=view_product&pid=304

-------------
Music is the strongest form of magic.(+45 31879997)blakmanpro@gmail.com, foa@sweetboxaudio.dk


Posted By: fuzzylogic
Date Posted: 10 January 2012 at 11:19pm
Badman 1851



-------------

NEIGHBOURHOOD SOUNDSYSTEM
Infinitely baffled.



Posted By: Jimmer
Date Posted: 10 January 2012 at 11:20pm
God they look brutal rupe!



-------------
http://connect-av.co.uk" rel="nofollow - http://connect-av.co.uk


Posted By: fuzzylogic
Date Posted: 10 January 2012 at 11:27pm
Originally posted by Jimmer Jimmer wrote:

God they look brutal rupe!



We likes em,great for dusting venues ceilings.

-------------

NEIGHBOURHOOD SOUNDSYSTEM
Infinitely baffled.



Posted By: Edd Jordan
Date Posted: 10 January 2012 at 11:45pm
Mine. hope to have 4 more by the end of the year!



-------------
I do a sideline in ply wood wheels.


Posted By: Dub Specialist
Date Posted: 11 January 2012 at 12:24am
12" heafty magnet 4"VC



-------------
treat all creation with respect. For music is sound...sound is vibration...vibration is energy... and energy begets life. Therein lies my passion! MUSIC IS LIFE


Posted By: Oscar
Date Posted: 11 January 2012 at 12:36am
Originally posted by RosscoPico RosscoPico wrote:

I must say, I was bit excited when I unpackaged these new carbon drivers which came from Italy;


They're sexy eh!



so sexy, I might have to buy one just for the sexiness!!!


Posted By: fuzzylogic
Date Posted: 11 January 2012 at 12:46am
Originally posted by Dub Specialist Dub Specialist wrote:

12" heafty magnet 4"VC ...BUT too embarrassed to tell yu name of the driver lolLOL no medals for naming the driver Big smile



Skytronic is my guess...

-------------

NEIGHBOURHOOD SOUNDSYSTEM
Infinitely baffled.



Posted By: MarjanM
Date Posted: 11 January 2012 at 12:48am
Originally posted by Father-Francis Father-Francis wrote:

he put the link it should be these ones here  http://www.eighteensound.com/index.aspx?mainMenu=view_product&pid=304" rel="nofollow - http://www.eighteensound.com/index.aspx?mainMenu=view_product&pid=304

I was asking where will he use that driver. Which box. I know the model.


-------------
Marjan Milosevic
MM-Acoustics
www.mm-acoustics.com
https://www.facebook.com/pages/MM-Acoustics/608901282527713


Posted By: RosscoPico
Date Posted: 11 January 2012 at 1:04am

Hi MarjanM, our 'Predator' subwoofer has been redesigned slightly so they're now modified to take these 18" drivers instead of the 21's.

The result is improved performance, e.g. better attack and sensitivity. This wasn't apparent until after we put the cabinets through physical testing - i.e. the acoustic modeling software wasn't 100% accurate in mapping the responses for this particular design.

We'll be using the 21' subs in a new larger tapped-horn sub which we are currently designing now...

Oscar - sure why not and a can of beer to go with it :)



-------------
.:ELEMENT 5 SYSTEMS:.


Posted By: Dub Specialist
Date Posted: 11 January 2012 at 2:23am
Originally posted by fuzzylogic fuzzylogic wrote:

Originally posted by Dub Specialist Dub Specialist wrote:

12" heafty magnet 4"VC ...BUT too embarrassed to tell yu name of the driver lolLOL no medals for naming the driver Big smile



Skytronic is my guess...
haha spot on must of the 4" VC gave it away...lolLOL


-------------
treat all creation with respect. For music is sound...sound is vibration...vibration is energy... and energy begets life. Therein lies my passion! MUSIC IS LIFE


Posted By: RosscoPico
Date Posted: 11 January 2012 at 4:56pm

Here's a photo of the 21" B&C which I'd taken a picture of at the Plasa Show (just before a security guard came over and politely told me off for using my camera there...lol!)

Looks like a nice woofer;




-------------
.:ELEMENT 5 SYSTEMS:.


Posted By: rich_gale
Date Posted: 11 January 2012 at 5:19pm
Originally posted by fuzzylogic fuzzylogic wrote:

Badman 1851


The first British looking driver i have seen for a long time.  look at those machined lumps.  beautiful


-------------
REFLEX ALL THE WAY.... (however, im playing with horns again...) That ok Mister Valiant? :)


Posted By: toastyghost
Date Posted: 11 January 2012 at 5:23pm
Originally posted by RosscoPico RosscoPico wrote:

Here's a photo of the 21" B&C which I'd taken a picture of at the Plasa Show (just before a security guard came over and politely told me off for using my camera there...lol!)

Looks like a nice woofer;




I believe cog is using some of these?


Posted By: RosscoPico
Date Posted: 11 January 2012 at 5:27pm



Originally posted by toastyghost toastyghost wrote:

I believe cog is using some of these?

Sorry, who's Cog?  I don't know of a member by that name.



-------------
.:ELEMENT 5 SYSTEMS:.


Posted By: toastyghost
Date Posted: 11 January 2012 at 5:32pm
Originally posted by RosscoPico RosscoPico wrote:



Originally posted by toastyghost toastyghost wrote:

I believe cog is using some of these?

Sorry, who's Cog?  I don't know of a member by that name.



Ha, sorry, stupid autocorrect business there. I typed 'csg' originally.


Posted By: RosscoPico
Date Posted: 11 January 2012 at 5:36pm

Ah I see - I wasn't sure if you meant Rog but there we go..

..but I guess they're both connected to Void - so you mean in those new infra-subs he now has?



-------------
.:ELEMENT 5 SYSTEMS:.


Posted By: SamV
Date Posted: 16 January 2012 at 9:52pm
One of the drivers we're playing with:



True 12" Cone
5" Voice Coil
96db @ 1w
1000wrms
Neo Magnet Structure
Shit loads of heatsinks
Shit loads of vents
Designed in the UK, apparently built here too.

One thing I can say, it's having sex LOUD and sounds great too! Oh an it's a mid driver lol. It'll do 60-1.5k quite happily all day long with no nasty peaks!


Posted By: csg
Date Posted: 16 January 2012 at 10:05pm
Originally posted by RosscoPico RosscoPico wrote:

Ah I see - I wasn't sure if you meant Rog but there we go..

..but I guess they're both connected to Void - so you mean in those new infra-subs he now has?


close - the drivers in the arcline infra's are the big brother of that b&c - neo, but over 20kg each....6 inch coil, that pic looks like the smaller one with the 4.5" coil


-------------
“The fact is this is about identifying what we do best and finding more ways of doing less of it better”


Posted By: RosscoPico
Date Posted: 16 January 2012 at 10:09pm
Interesting woofer Sam - I haven't got a clue what it is!

5" voice coil - very nice, and good sensitivity for the power rating....

...so what on earth is it then?!  (I can't even try to guess....lol)


-------------
.:ELEMENT 5 SYSTEMS:.


Posted By: SamV
Date Posted: 16 January 2012 at 10:16pm
Let's see if anyone guesses first :)


Posted By: Adam_Iron_Horse
Date Posted: 16 January 2012 at 10:17pm
For some reason I wanna say Faital pro and i have absolutely no idea why...

Every driver iv seen by them seems to have funky designs... probably totally wrong though...


Posted By: RosscoPico
Date Posted: 16 January 2012 at 10:21pm
Originally posted by csg csg wrote:

Originally posted by RosscoPico RosscoPico wrote:

Ah I see - I wasn't sure if you meant Rog but there we go..

..but I guess they're both connected to Void - so you mean in those new infra-subs he now has?


close - the drivers in the arcline infra's are the big brother of that b&c - neo, but over 20kg each....6 inch coil, that pic looks like the smaller one with the 4.5" coil

The 21SW152 is of course the bigger model with  the 6" VC, but that weighs 18.5Kgs....so what 21" B&C driver weighs over 20Kgs or is it OEM?

SamV - haha, I didn't think you would give the game away that easily(!)

Adam - I'd be very surprised if it were a Faital, but lets wait and see eh...


-------------
.:ELEMENT 5 SYSTEMS:.


Posted By: toastyghost
Date Posted: 16 January 2012 at 10:46pm
Originally posted by Adam_Iron_Horse Adam_Iron_Horse wrote:

For some reason I wanna say Faital pro and i have absolutely no idea why...

Every driver iv seen by them seems to have funky designs... probably totally wrong though...


Faital are Italian, not British.


Posted By: csg
Date Posted: 16 January 2012 at 10:47pm
sorry, my mistake, it will be 18.5Kg, 20kg is the shipping weight. It is an OEM unit though, different coil from the stock driver, but as far as i am aware, the magnet is standard.

-------------
“The fact is this is about identifying what we do best and finding more ways of doing less of it better”


Posted By: RosscoPico
Date Posted: 17 January 2012 at 12:19pm
Sure, I guess with 8ohm coils eh!

I've seen those new for $680 in the US, which I recon is a bloody good driver for that money (443 GDP).

IIRC, they also used to do a 21SW150 driver which still had a 6" VC but with a lower 1500W AES.


-------------
.:ELEMENT 5 SYSTEMS:.


Posted By: Adam_Iron_Horse
Date Posted: 17 January 2012 at 11:31pm
Originally posted by toastyghost toastyghost wrote:

Originally posted by Adam_Iron_Horse Adam_Iron_Horse wrote:

For some reason I wanna say Faital pro and i have absolutely no idea why...

Every driver iv seen by them seems to have funky designs... probably totally wrong though...


Faital are Italian, not British.


My bad didn't see that...


Posted By: RAGING PROMOTIONS
Date Posted: 18 January 2012 at 10:15pm
got 8 of these
http://imageshack.us/photo/my-images/708/38873420740728517735228.jpg/" rel="nofollow">

jake


-------------
8X Turbosound TSW-721's and 4X TFL-760Ht's


Posted By: SamV
Date Posted: 22 January 2012 at 12:57am
Lucky bastid. Poor back.


Posted By: andycw
Date Posted: 22 January 2012 at 1:16am

LOL


Posted By: Dub Specialist
Date Posted: 22 January 2012 at 1:28am
Heftiest Woofer

love to the size of the scoop to load this inLOLLOLLOL


-------------
treat all creation with respect. For music is sound...sound is vibration...vibration is energy... and energy begets life. Therein lies my passion! MUSIC IS LIFE


Posted By: IanD
Date Posted: 22 January 2012 at 1:09pm
Photoshop jobbie or wooden fake? Take your pick...

(looks like a PD.8050, estimated weight 2 tons...)


Posted By: AJordan
Date Posted: 22 January 2012 at 1:12pm
Photoshop


Posted By: RosscoPico
Date Posted: 22 January 2012 at 1:20pm
That'd be perfect for loading into one of these (may need scaling up a bit...)




-------------
.:ELEMENT 5 SYSTEMS:.


Posted By: TechnoChef
Date Posted: 22 January 2012 at 2:42pm
Originally posted by RosscoPico RosscoPico wrote:


That'd be perfect for loading into one of these (may need scaling up a bit...)





What in the holy hell are they being used for? Party on the other side of the lake? (or loch/mere/water/etc.)


Posted By: RosscoPico
Date Posted: 22 January 2012 at 2:52pm
It was designed to protect salmon in the fjord and piss off a mining company from a safe distanceLOL

http://ratkje.no/current-projects/desibel-the-worlds-largest-mobile-horn-system/" rel="nofollow - http://ratkje.no/current-projects/desibel-the-worlds-largest-mobile-horn-system/

I know this isn't the show off your heftiest horn thread, but excuse me for showing you another one which is used for different purposes...




-------------
.:ELEMENT 5 SYSTEMS:.


Posted By: RosscoPico
Date Posted: 24 January 2012 at 7:35am
Originally posted by SamV SamV wrote:

One of the drivers we're playing with:



True 12" Cone
5" Voice Coil
96db @ 1w
1000wrms
Neo Magnet Structure
Shit loads of heatsinks
Shit loads of vents
Designed in the UK, apparently built here too.

One thing I can say, it's having sex LOUD and sounds great too! Oh an it's a mid driver lol. It'll do 60-1.5k quite happily all day long with no nasty peaks!

So nobody has managed to guess it, are you willing to tell us yet mr V.?!


-------------
.:ELEMENT 5 SYSTEMS:.



Print Page | Close Window

Forum Software by Web Wiz Forums® version 12.08 - https://www.webwizforums.com
Copyright ©2001-2026 Web Wiz Ltd. - https://www.webwiz.net
