Topic: arrays
Posted By: nuclearbass
Subject: arrays
Date Posted: 24 December 2012 at 3:14pm
|
was just going thru this years qlimax pics and thought id share this pic of the line arrays in the back ground..... just looks impressive
------------- one life - have fun! Force fusion pro audio |
Replies:
Posted By: nuclearbass
Date Posted: 24 December 2012 at 3:15pm
and this, is there a thread already on here for line arrays?  ------------- one life - have fun! Force fusion pro audio |
Posted By: mykey-
Date Posted: 24 December 2012 at 4:50pm
|
I mentioned quite a while back as to how it should be done. This picture proves it. ------------- BbbBBRAAAAPppBBBBbgushhhhhhhhssshhhhhGrAbRAAAAAAPPPPPp = Dubstep |
Posted By: nuclearbass
Date Posted: 24 December 2012 at 4:52pm
what did you say?? every Q Dance promotion i see has arrays like this, they dont under do it on sound to say the least!! which is how it should be done, we are at a music dance event after all ------------- one life - have fun! Force fusion pro audio |
mykey- wrote:Posted By: mykey-
Date Posted: 24 December 2012 at 5:04pm
|
Can't remember the thread. Think it was to do with Glastonbury. I commented then SBC agreed. ------------- BbbBBRAAAAPppBBBBbgushhhhhhhhssshhhhhGrAbRAAAAAAPPPPPp = Dubstep |
Posted By: nuclearbass
Date Posted: 24 December 2012 at 5:17pm
|
Yeh I've seen a few Glastonbury pics and there wasn as many hangs and the area must have been bigger too ------------- one life - have fun! Force fusion pro audio |
Posted By: trance addict
Date Posted: 24 December 2012 at 5:28pm
|
I attended this year edition it sounded the same and great everywhere in the stadium. This setup is done to deal with the noise outside the venue focusing the sound on the floor. ------------- "There are two kinds of fools, One says-this is old and therefore good. The other says-this is new and therefore better." -Bob Katz |
Posted By: nuclearbass
Date Posted: 24 December 2012 at 6:13pm
|
i think the whole production is immence, i attended defqon 1 this year and my only "bad word" was on the tent that had F1 on there... all the line arrays amazed me at the sound they gave out ------------- one life - have fun! Force fusion pro audio |
Posted By: trance addict
Date Posted: 24 December 2012 at 8:54pm
hard to beat a well deployed K1/v-dosc rig
------------- "There are two kinds of fools, One says-this is old and therefore good. The other says-this is new and therefore better." -Bob Katz |
Posted By: Santaclaus
Date Posted: 24 December 2012 at 10:52pm
| Santa should buy them some Void Primes and be done with it, a ground stacked Prime system is going to work a lot better than tonnes of arrays flown all over the place. |
Posted By: Grubbah
Date Posted: 24 December 2012 at 11:37pm
|
Glastonbury 2011 was too quiet.... second stage... chemical brothers... half way through the crowd and it was so quiet... it was like sitting in my lounge...NO DELAY arrays... and the crowd was hardly skimping on numbers... |
Posted By: nuclearbass
Date Posted: 24 December 2012 at 11:41pm
Surely a ground stack at the front isn't going to have anywhere near the coverage that all that has??? ------------- one life - have fun! Force fusion pro audio |
Posted By: Santaclaus
Date Posted: 24 December 2012 at 11:45pm
|
If you get the tops high enough it will work, maybe a little side fill or infill but yes it would work. Me and the elves did a big techcore rave about 27 weeks ago now and covered 1000 ravers with our ground stacked party system. ------------- Every little helps |
Posted By: nuclearbass
Date Posted: 24 December 2012 at 11:51pm
|
There's probably about 40,000 people in this pics. Bit of a difference between that and covering 1000 people... I smell a troll here ------------- one life - have fun! Force fusion pro audio |
Posted By: Mark James
Date Posted: 24 December 2012 at 11:53pm
|
i think its called humour :P ------------- insert silly sentence here |
Posted By: Santaclaus
Date Posted: 24 December 2012 at 11:57pm
|
Ok Santa would agree but all you do add to the system, we took 24 subs & 12 tops so i guess 936 sub and 468 tops would do it. So who fancy's a Norfolk link up of Void kit ? ------------- Every little helps |
Posted By: mykey-
Date Posted: 25 December 2012 at 6:36am
 ------------- BbbBBRAAAAPppBBBBbgushhhhhhhhssshhhhhGrAbRAAAAAAPPPPPp = Dubstep |
Posted By: mykey-
Date Posted: 25 December 2012 at 6:40am
|
Timmy ------------- BbbBBRAAAAPppBBBBbgushhhhhhhhssshhhhhGrAbRAAAAAAPPPPPp = Dubstep |
Posted By: nuclearbass
Date Posted: 25 December 2012 at 6:15pm
Your attempt at humour is pretty s*ite, if ur gunna troll then at least be funny ------------- one life - have fun! Force fusion pro audio |
Posted By: lgosdset
Date Posted: 26 December 2012 at 2:19pm
| hahahahaha |
Posted By: Santaclaus
Date Posted: 26 December 2012 at 6:17pm
Your so from Norfolk ------------- Every little helps |
Posted By: nuclearbass
Date Posted: 28 December 2012 at 10:44pm
|
ur soooo from north pole ------------- one life - have fun! Force fusion pro audio |
Posted By: mini-mad
Date Posted: 29 December 2012 at 1:42am
 ------------- If it sounds like a gorilla is trying to escape, turn it down. |
Posted By: jacethebase
Date Posted: 30 December 2012 at 12:46am
Glastonburys Noise situation is just getting out of hand! Trust me that D&B J series Skan put on the other stage would have smashed that field to bits. Are you local to the festival? Fancy a beer this year? J ------------- www.wedding-production.co.uk www.stage2sound.com |
Posted By: nuclearbass
Date Posted: 30 December 2012 at 10:29am
|
Any more pics ? ------------- one life - have fun! Force fusion pro audio |
Posted By: Phil B
Date Posted: 30 December 2012 at 11:06am

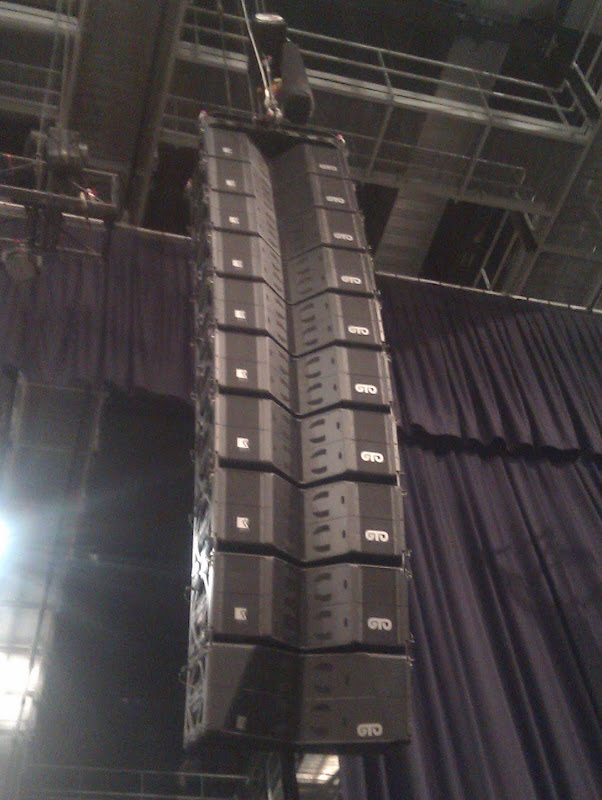

Here ya go.... some big...some not so big...        .p. ------------- Mostly harmless.... except if catering is shut. Solar Sound System Shennanigans.. http://diyhifi.biz/" rel="nofollow - http://diyhifi.biz/ |
Posted By: nuclearbass
Date Posted: 30 December 2012 at 12:57pm
|
Nice. Arrays are awsome. Are those subs that are flown aswell in first couple of pics... What's the advantage of flying subs? ------------- one life - have fun! Force fusion pro audio |
Posted By: Pasi
Date Posted: 30 December 2012 at 1:09pm
|
Easier aligment with the main arrays. Ground stacked subs can never be aligned perfectly to mains for the whole audience area. |
Posted By: MarjanM
Date Posted: 30 December 2012 at 1:15pm
|
Whats with the drum stick at the NCA rig? ------------- Marjan Milosevic MM-Acoustics www.mm-acoustics.com https://www.facebook.com/pages/MM-Acoustics/608901282527713 |
Posted By: nuclearbass
Date Posted: 30 December 2012 at 1:30pm
and the glow stick ------------- one life - have fun! Force fusion pro audio |
Posted By: nuclearbass
Date Posted: 30 December 2012 at 1:33pm
ah, that makes sense, is there much efficiency lost by flying them tho? ------------- one life - have fun! Force fusion pro audio |
Posted By: nuclearbass
Date Posted: 30 December 2012 at 1:35pm
the bottom row 2nd and 4th cab from the left are linked, but why do they both have an input? ------------- one life - have fun! Force fusion pro audio |
Posted By: Plaguesguitarist
Date Posted: 30 December 2012 at 1:58pm
|
looks like Input Signal into cab 3 > 4 > 2 > 1 ------------- Why did the lampy cross the road? To steal MY sharpie. |
Posted By: nuclearbass
Date Posted: 30 December 2012 at 2:20pm
|
ah ye, that makes sense..... ------------- one life - have fun! Force fusion pro audio |
Posted By: Phil B
Date Posted: 30 December 2012 at 9:03pm
Somewhere to hang me headfones. This was monitor world! Slightly close to the back of the stacks.....Glow stick was for fun! NCA is usually input to 2 of the four RGW boxes and link to the other two. They have rotating pins so 1+/1- goes out the link as 2 + / 2 - to the next box so as to use all four lines in an NL4 evenly. Can`t remember exactly how we wired that one ! .p. edit...I remember now after a b`fast cup of tea! There was only 1 x amp for the all the RGW`s so we ran 4 a side off an FFa 10k. That`s why there`s one NL4 hanging down loose, all the others are linked off box 3. ------------- Mostly harmless.... except if catering is shut. Solar Sound System Shennanigans.. http://diyhifi.biz/" rel="nofollow - http://diyhifi.biz/ |
Posted By: nuclearbass
Date Posted: 30 December 2012 at 9:37pm
that cable holding them all up must have had some serious tension on it to keep all that up!! ------------- one life - have fun! Force fusion pro audio |
Posted By: eltron
Date Posted: 31 December 2012 at 9:42am
| That horisontal cable isn't carrying the weight, those (near)vertical tethers are. |
Posted By: no1djchaz
Date Posted: 31 December 2012 at 10:28am
|
olympics? i'd have said that was quite big tbh :) ------------- they say rome wasnt built in a day? thats because i wasnt on the job |
Posted By: tall_mike
Date Posted: 31 December 2012 at 12:02pm
 Royal Albert Hall ------------- http://www.livesoundhire.co.uk" rel="nofollow - Live Sound Hire Ltd |
Posted By: nuclearbass
Date Posted: 31 December 2012 at 4:27pm
|
i might be being blind, but wheres the arrays lol?? is that them in the middle above the screen?? ------------- one life - have fun! Force fusion pro audio |
Posted By: Pasi
Date Posted: 31 December 2012 at 4:32pm
|
Left & right? Those black lines? |
Posted By: nuclearbass
Date Posted: 31 December 2012 at 4:45pm
|
oh yeh, didnt see those on my phone... thats bad array porn ------------- one life - have fun! Force fusion pro audio |
Posted By: Goodvibetribe
Date Posted: 31 December 2012 at 8:17pm
Definitely not bad! Em Acoustics latest Halo Compact Line array. The fact that only that is needed to fill the Royal Albert Hall is very very impressive indeed. i heard it very quietly at the stage electrics exhibition in Cardiff recently and the clarity was second to none! That was just with a Cd though, still havent heard it live yet.
|
Posted By: tall_mike
Date Posted: 04 January 2013 at 8:27am
|
Haha, that certainly is Halo Compact. Covered the best part of 5,000 people in the Albert Hall with that rig (obviously with the aid of a little bit of front fill!), the level was averaging about 110db at FOH apparently with much more in the tank, but being a classical gig they're not gonna run it too loud. The engineer at the RAH said it was the best sounding system they've ever had at the hall. ------------- http://www.livesoundhire.co.uk" rel="nofollow - Live Sound Hire Ltd |
Posted By: nuclearbass
Date Posted: 04 January 2013 at 1:21pm
|
It's bad cos I like clooooose ups, like the money shot ;) ------------- one life - have fun! Force fusion pro audio |
