whats the angle & cut list

 Post Reply Post Reply Page  12>
Author
Message
nuclearbass View Drop Down
Old Croc
Old Croc
Avatar

Joined: 06 May 2010
Location: Rotherham
Status: Offline
Points: 9050
Post Options Post Options   Thanks (0) Thanks(0)   Quote nuclearbass Quote  Post ReplyReply Direct Link To This Post Topic: whats the angle & cut list
    Posted: 20 November 2012 at 8:01pm
probably a real simple answer

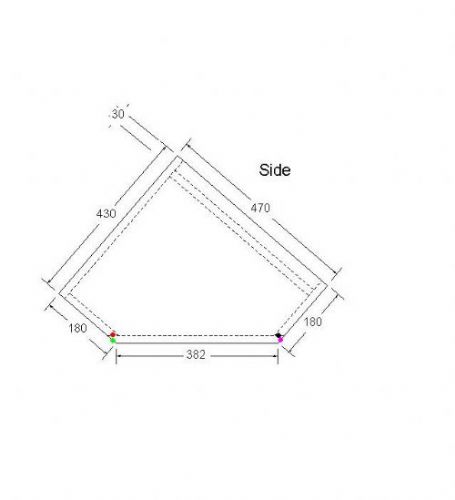

but whats the angle on these cuts


Edited by nuclearbass - 20 December 2012 at 1:59pm
one life - have fun!
Force fusion pro audio
Back to Top
Muckerbarnes1 View Drop Down
Old Croc
Old Croc
Avatar

Joined: 20 March 2010
Location: Stroud
Status: Offline
Points: 2654
Post Options Post Options   Thanks (0) Thanks(0)   Quote Muckerbarnes1 Quote  Post ReplyReply Direct Link To This Post Posted: 20 November 2012 at 8:57pm
45 or 135, depends which way you pass through the saw. So 45 deg.

The drw still mkes a triangle when you move the 382mm  up to the 470 sides. The back corner is 90 deg. A triangle has 180 deg. The remaining 90/2 = 45..
Billy Dawg.
Back to Top
George C View Drop Down
Registered User
Registered User
Avatar

Joined: 19 June 2012
Location: Norfolk
Status: Offline
Points: 322
Post Options Post Options   Thanks (0) Thanks(0)   Quote George C Quote  Post ReplyReply Direct Link To This Post Posted: 20 November 2012 at 9:15pm
wont be 2x 45 degree angles as the two long sides are not equal....  ie 430 and 470

however I'll be damned if I can remember how to work it out exactly but I'm sure there's some trigonometry required and I'm far to long out of school for this one... sorry  Cry
happiness is a ticked off list
Back to Top
nuclearbass View Drop Down
Old Croc
Old Croc
Avatar

Joined: 06 May 2010
Location: Rotherham
Status: Offline
Points: 9050
Post Options Post Options   Thanks (0) Thanks(0)   Quote nuclearbass Quote  Post ReplyReply Direct Link To This Post Posted: 20 November 2012 at 9:44pm
jurys out on this one then lol
one life - have fun!
Force fusion pro audio
Back to Top
cravings View Drop Down
Old Croc
Old Croc
Avatar

Joined: 30 January 2007
Location: Ireland
Status: Offline
Points: 7441
Post Options Post Options   Thanks (0) Thanks(0)   Quote cravings Quote  Post ReplyReply Direct Link To This Post Posted: 20 November 2012 at 10:17pm
i did make some of these.. can't remember the working out though. thought i had drawn them up in cad but i don't seem to have..
Back to Top
cravings View Drop Down
Old Croc
Old Croc
Avatar

Joined: 30 January 2007
Location: Ireland
Status: Offline
Points: 7441
Post Options Post Options   Thanks (0) Thanks(0)   Quote cravings Quote  Post ReplyReply Direct Link To This Post Posted: 20 November 2012 at 10:19pm
Angle: 139.236395°
Angle: 130.763605°
Back to Top
cravings View Drop Down
Old Croc
Old Croc
Avatar

Joined: 30 January 2007
Location: Ireland
Status: Offline
Points: 7441
Post Options Post Options   Thanks (0) Thanks(0)   Quote cravings Quote  Post ReplyReply Direct Link To This Post Posted: 20 November 2012 at 10:20pm
left first, right second, as i've listed them...
Back to Top
George C View Drop Down
Registered User
Registered User
Avatar

Joined: 19 June 2012
Location: Norfolk
Status: Offline
Points: 322
Post Options Post Options   Thanks (0) Thanks(0)   Quote George C Quote  Post ReplyReply Direct Link To This Post Posted: 20 November 2012 at 10:24pm
Originally posted by cravings cravings wrote:

Angle: 139.236395°
Angle: 130.763605°

don't quite know how you did it but sounds good, better than 2x 45 degree   Smile
happiness is a ticked off list
Back to Top
nuclearbass View Drop Down
Old Croc
Old Croc
Avatar

Joined: 06 May 2010
Location: Rotherham
Status: Offline
Points: 9050
Post Options Post Options   Thanks (0) Thanks(0)   Quote nuclearbass Quote  Post ReplyReply Direct Link To This Post Posted: 20 November 2012 at 10:43pm

im a simpleton,
red =
green =
black =
purple =
one life - have fun!
Force fusion pro audio
Back to Top
cravings View Drop Down
Old Croc
Old Croc
Avatar

Joined: 30 January 2007
Location: Ireland
Status: Offline
Points: 7441
Post Options Post Options   Thanks (0) Thanks(0)   Quote cravings Quote  Post ReplyReply Direct Link To This Post Posted: 20 November 2012 at 10:55pm
what i gave you is the angles between the 2 lines, the 180mm line, and the 382.

when it comes to cutting wood, pick something doable on the saw, and good to join up...

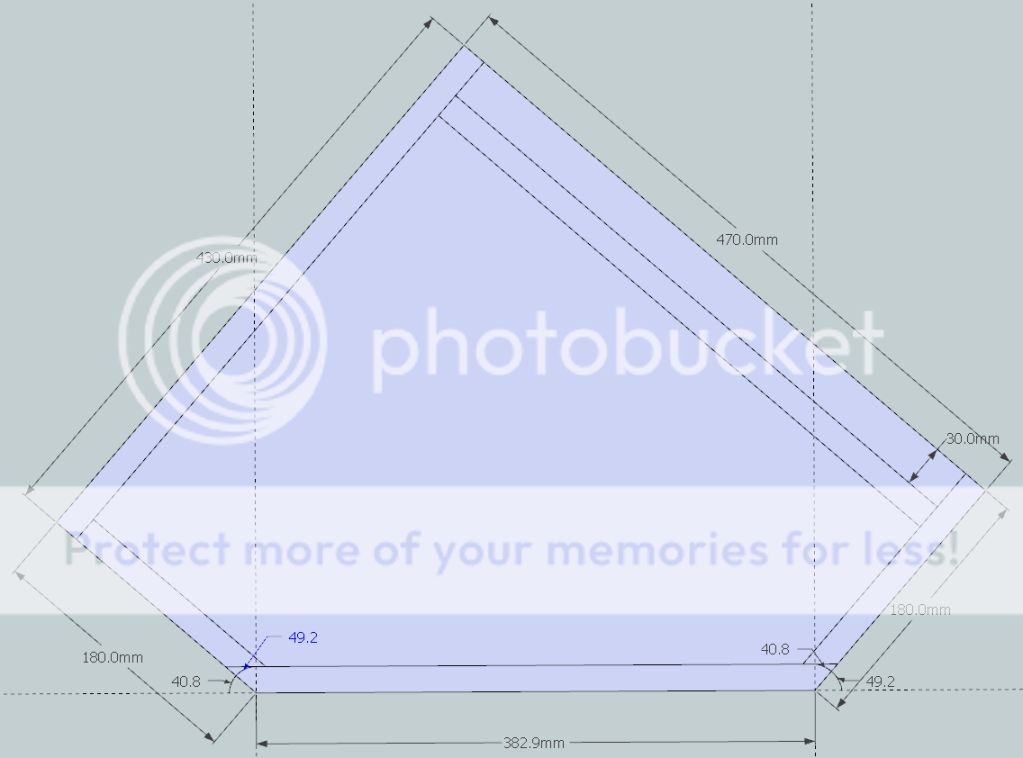

did it in cad quickly...
Back to Top
Jez_3phaze View Drop Down
Registered User
Registered User
Avatar

Joined: 31 August 2009
Location: Derby UK
Status: Offline
Points: 162
Post Options Post Options   Thanks (0) Thanks(0)   Quote Jez_3phaze Quote  Post ReplyReply Direct Link To This Post Posted: 20 November 2012 at 11:01pm
Back to Top
nuclearbass View Drop Down
Old Croc
Old Croc
Avatar

Joined: 06 May 2010
Location: Rotherham
Status: Offline
Points: 9050
Post Options Post Options   Thanks (0) Thanks(0)   Quote nuclearbass Quote  Post ReplyReply Direct Link To This Post Posted: 20 November 2012 at 11:01pm
Ah, yeh got you, cheers mate
one life - have fun!
Force fusion pro audio
Back to Top
